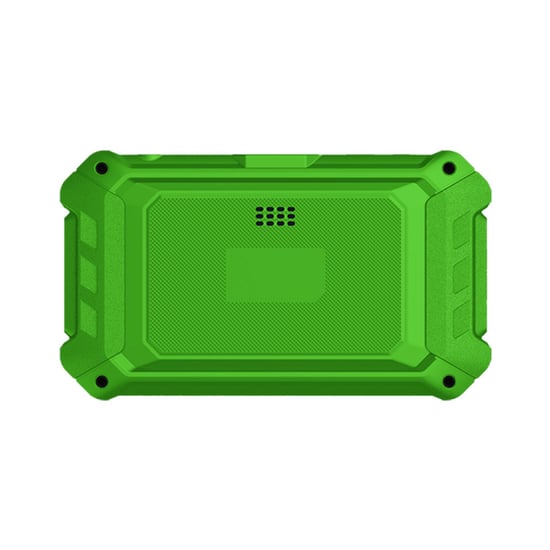

OBDSTAR MT502 Automotive Compressor Test Platform for Electric Vehicle by BENCH
OBDSTAR MT502 Automotive Compressor Test Platform Description:
OBDSTAR MT502 is an automotive compressor test platform designed for BENCH testing. It can power on air conditioning compressors by sending CAN signals and supports most brands of electric scroll compressors used in electric vehicles. The MT502 provides a convenient solution for technicians to test compressors outside the vehicle environment.
MT502 adopts the latest 3.0 APK operating platform and provides reliable compressor testing functions for electric vehicles. The device allows technicians to power on and test electric compressors through CAN BUS communication on the workbench.
Development Background:
Electric vehicles commonly use electric scroll compressors for air conditioning systems. These compressors operate based on CAN BUS signals sent from the air conditioning controller. OBDSTAR MT502 simulates these CAN signals, allowing technicians to activate and test compressors directly on the bench without installing them in the vehicle.
The device provides an efficient diagnostic solution for maintenance technicians and includes one year of free software updates.
OBDSTAR MT502 Features:
- Android 5.1.1 operating system
- Simple and intuitive menu guidance for easy operation
- Wi-Fi connection with one-click software upgrade
- Intelligent search with built-in help guide
- One year free software update
- Language support: English
OBDSTAR MT502 Advanced Functions:
- Supports hundreds of electric vehicle compressor models
- Intelligent search by vehicle make, model, part number, ECU manufacturer and MCU controller type
- Exclusive 2 to 7 low-voltage special connector for easy wiring
- Exclusive 1+7 group high-voltage special cable for safer operation

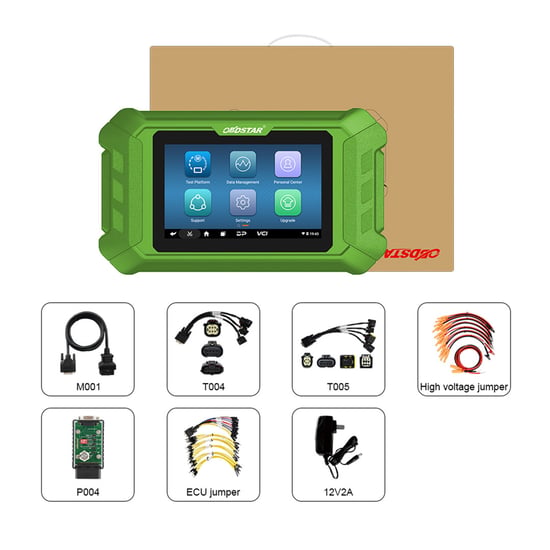

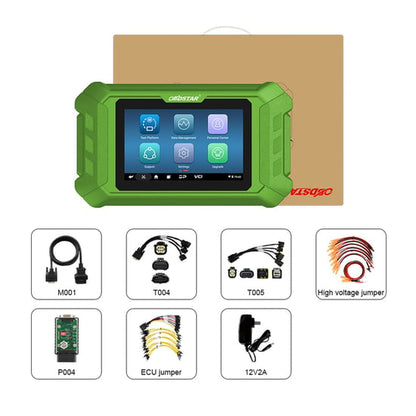

OBDSTAR MT502 Package Includes:
- 1pc x MT502 Test Platform
- 1pc x M001 Main Cable
- 1pc x T004 Compressor Test Harness 1
- 1pc x T005 Compressor Test Harness 2
- 1pc x High Voltage Jumper
- 1pc x P004 Adapter
- 1pc x P004 ECU Clone Jumper
- 1pc x 12V2A Charger
