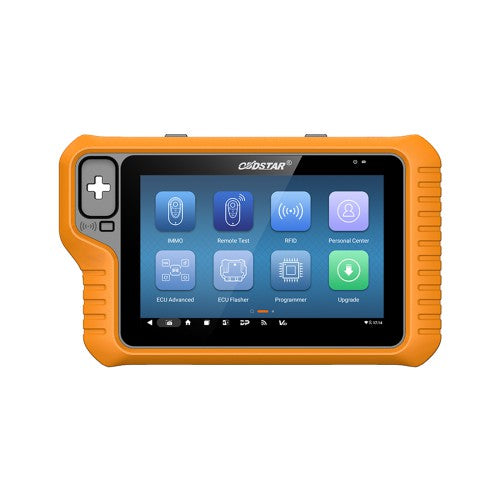

OBDSTAR X300 Classic G3 Key Programmer A1 Full Software Package
OBDSTAR X300 Classic G3 Key Programmer A1 Full Software Package Description:
OBDSTAR X300 Classic G3 is a professional automotive key programming and ECU service platform designed for locksmiths and automotive electronics technicians. This bundle includes the full software package with additional activation modules such as test platform, ECU flasher, airbag reset and odometer correction functions.

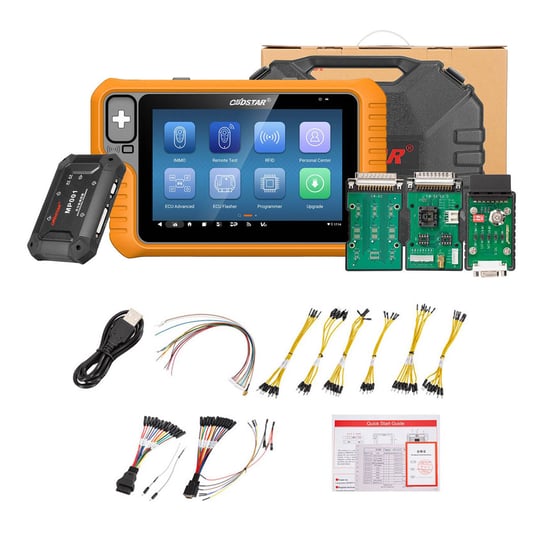

Package Includes Software Activations:
- OBDSTAR X300 Classic G3 Key Programmer A1

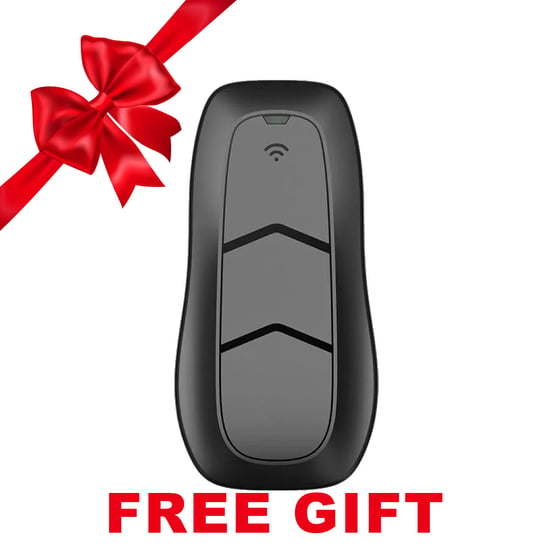

- Free Gift: Key SIM Smart Key Emulator
- MT501 & MT502 Test Platform Function Activation
- DC706 ECM + TCM + BODY Flasher Activation
- P50 Airbag Reset + Battery Reset + Steering Angle Reset Activation
- ODO Master (Car Odometer + Motorcycle Odometer + Oil Reset Software)
The X300 Classic G3 expands the functionality of the OBDSTAR X300 DP Plus series and can integrate multiple OBDSTAR tools including ODO Master mileage correction, P50 airbag reset, MT series test platform and DC706 ECU cloning functions.
Hardware Specifications:
| Operating System | Android 11 |
| Processor | RK3568 Hexa-Core |
| Storage | 4GB RAM + 64GB Storage |
| Display | 8-inch high-brightness screen |
| Resolution | 1280 × 800 |
| WiFi | Dual Band 2.4GHz / 5GHz |
| Bluetooth | Bluetooth 5.0 |
| VCI Processor | STM32H723 High Performance Processor |
| Interfaces | HDMI, RJ-45, USB Type-A, USB Type-C |
Built-in Communication Protocols:
- CAN FD
- Fault Tolerant CAN
- DOIP
- OBD16 Pinout Switch
- RFID
- Remote Test
Supported Functions:
- Key Programming (IMMO)
- IMMO OFF
- Remote Test
- Read / Write EEPROM and MCU
- Read / Write Transponder
- Unlock ECU
- Make Dealer Keys
- Make Start Keys
- Renew Key
- OBDII Diagnostics
- ECU Advanced Functions
Supported Vehicle Types:
- Passenger Cars
- Heavy-Duty Vehicles
- Electric Vehicles
- Motorcycles
- Marine Vehicles (Jet-Ski)
Advanced Functions:
- Motorcycle key programming for Harley, Triumph, Ducati, Kawasaki, Honda, Suzuki, Yamaha, BRP, Indian and others
- Marine key programming for BRP, Kawasaki and Yamaha
- Electric vehicle key programming for LI, NETA, LEAPMOTOR, SERES, AITO and others
- ECU unlock function for Alfa Romeo, Fiat, Chrysler, Dodge and Jeep
- Smart 453 all keys lost programming solution
- Renault all keys lost programming support for multiple models
- Safe pincode reading for Renault vehicles after 2015
Key Advantages:
- Two years free online software updates
- Built-in CANFD and DOIP protocols
- Integrated RFID and remote test functions
- High-performance VCI processor
- Expandable all-in-one diagnostic and programming platform
Compatibility:
The X300 Classic G3 is compatible with many existing OBDSTAR adapters and cables including:
- P002 Adapter
- P003 Adapter
- Key SIM Adapter
- CAN Direct Kit
- Toyota 24/27/30 Cable
- Nissan 40 BCM Cable
- Nissan / Renault 16+32 Cable
- FCA 12+8 Cable
- Toyota 8A Cable
- Ford All Keys Lost Cable
Frequently Asked Questions:
Q: Is X300 Classic G3 compatible with all functions of X300 DP Plus?
A: No. X300 Classic G3 focuses on key programming and ECU repair functions and does not include all diagnostic functions of X300 DP Plus.
Q: Can I use adapters from older OBDSTAR devices?
A: Yes. The X300 Classic G3 supports many adapters and cables previously purchased for other OBDSTAR tools.
Q: What is the ECU Unlock function?
A: ECU Unlock allows used ECU modules to be reused in another identical vehicle. Without unlocking, the ECU may report faults and cannot function correctly.
