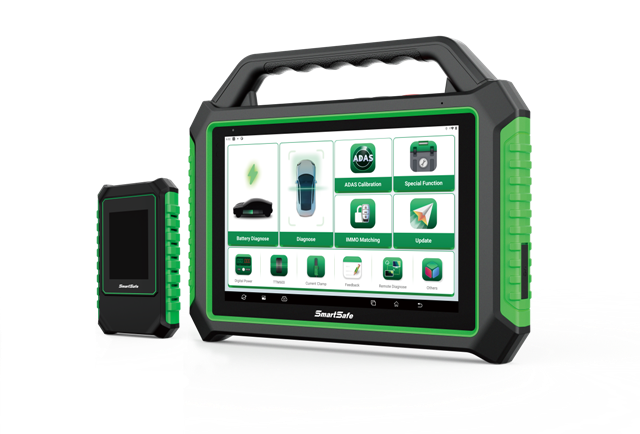

SmartSafe P01 EV Diagnostic Tool

P01 is a professional detection level EV diagnostic tool that integrates battery pack diagnostic, whole vehicle system diagnostic, and common maintenance functions.

Features

• Cover more than 95% of the whole system of EVs, and keep updating;
• Supports testing of DC/DC converter, onboard charger, high-voltage distribution box, and other common maintenance functions
• Provide four battery pack connection methods, including OBD, special connector, jumper connection and fast charging port connection;
• Equipped with battery pack professional connector as standard and integrated aviation plug connector to improve detection efficiency;
• Support ADAS calibration, tread detection, insulation tester, oscilloscope, digital power supply, multimeter, current clamp, videoscope and other expansion modules;
• Dual WIFI design, the host is connected to the VCI with independent WIFI, and the VCI does not affect the host to access the Internet when it is working;
• Provide the whole vehicle topological graph, clearly display the vehicle communication network, and quickly locate the fault point.

Functions

• Battery pack detection: Support battery pack detection of passenger car and commercial vehicle battery brands, read SOC/SOH, monomer/module voltage, temperature, battery pack status and fault information, and automatically calculate total voltage and differential pressure, key index data such as the highest/lowest voltage, and automatically mark abnormal data.
• Vehicle detection: Support the whole system and full-function detection of EVs, such as code reading, code clearing, data flow reading, action testing, and special functions.
• Fast charging port detection: Connect the fast charging detection gun with Bluetooth, and read the battery pack data through the fast charging port of the vehicle to realize fast detection of the battery pack.
• Maintenance function: Support offline testing of DC-DC converters, OBC car chargers, air conditioner compressors, 48V light hybrid components, etc., and support 30+ common special functions.
• ADAS calibration: Supports ADAS system calibration of many models in Europe, America, Asia, and China, compatible with ADAS PRO+, ADAS MOBILE, ADAS LITE, ADAS RADAR 3IN1 and other equipment.
• Test report: Support the display of battery pack test report, vehicle test report, ADAS calibration report, etc.
• Software upgrade: Support online upgrades, including model software, firmware software, and APP software.
• Module expansion: Support tread detection, digital power supply, oscilloscope, multimeter, current clamp, insulation test, endoscope and other functional expansions.

Parameters

Host

SLC

View Specification Sheet
