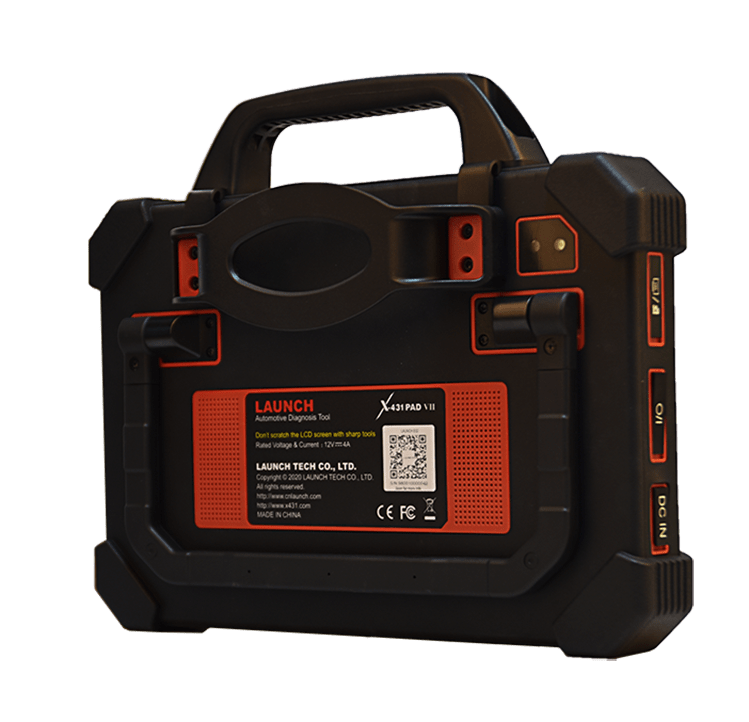

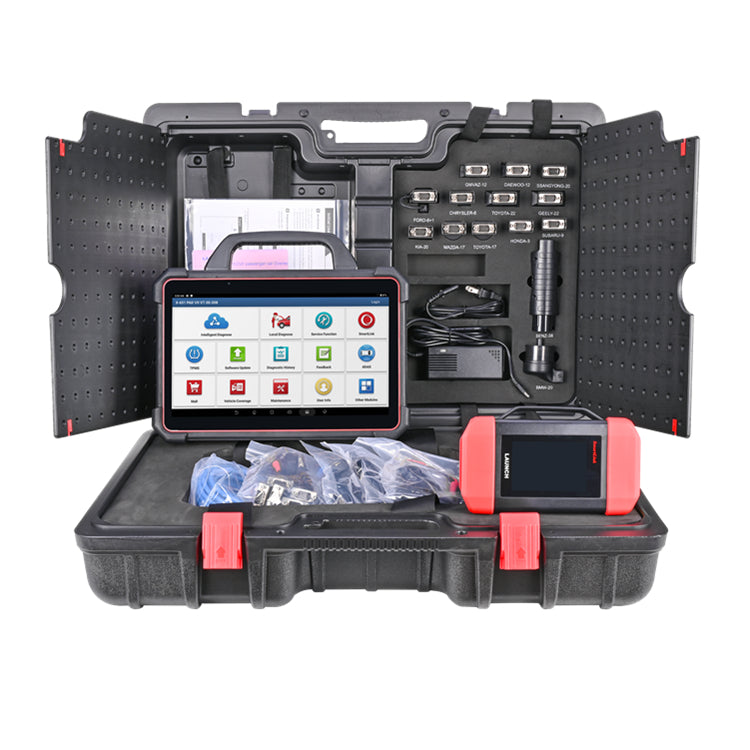

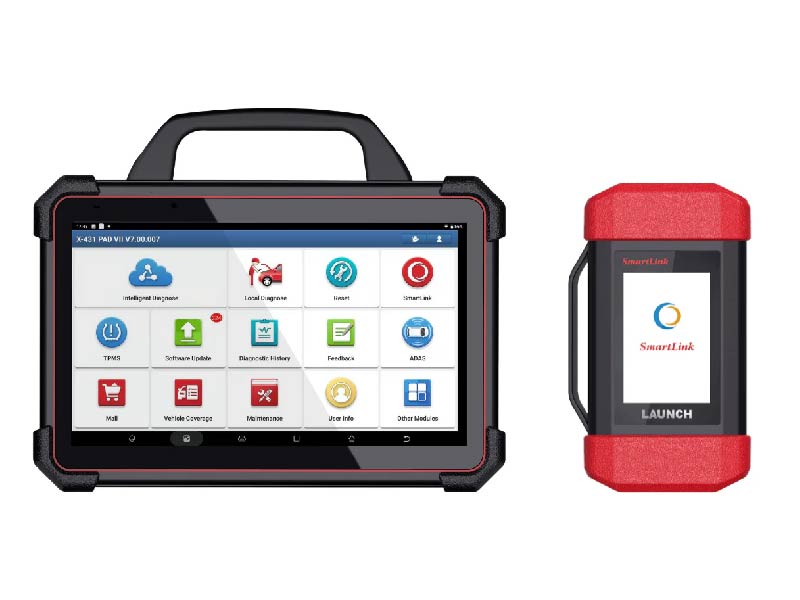

LAUNCH X-431 PAD VII

  LAUNCH X-431 PAD VII is an unexpected high-end diagnostic, comes with a 13.3 inch large touch screen, 32 service functions and Smartlink remote diagnosis. Equipped with the 2.0GHz Octa-core optimized chipset, Android 9.0 operating system, 8G memory and 256G large storage memories, X-431 PAD VII makes your intelligent diagnosis...

  LAUNCH X-431 PAD VII is an unexpected high-end diagnostic, comes with a 13.3 inch large touch screen, 32 service functions and Smartlink remote diagnosis. Equipped with the 2.0GHz Octa-core optimized chipset, Android 9.0 operating system, 8G memory and 256G large storage memories, X-431 PAD VII makes your intelligent diagnosis faster than ever.
  The precision-machined outer shell is designed to work against workshop hazards such as water and dust damage and in compliance with IP65.
  The X-431 PAD VII uses a high-capacity (about 19,000 mAh) and high power battery to ensure a longer battery life but a shorter charging time.
  Moreover, X-431 PAD VII improves the connection between scanner and VCI into ‘Dual WiFi’ connectivity, which allows the VCI to maintain faster and stable connection during diagnostics.



Features:

  1. Full system vehicle coverage for U.S., Asian and European markets over 110 brands, which is continually updated
  2. The software is available to purchase separately on the Mall as demanded
  3. Real-time voltage display now be supported, which helps you monitor the voltage condition of vehicle during the diagnosis
  4. Topology module mapping gives you visual checking on DTCs and all systems communication status
  5. Support automotive communication protocols CAN/CANFD/DolP and automotive communication standards J2534/O-PDU/RP1210
  6. Auto-detects the communications protocol of the vehicle and assist to check automotive OBDII port pin dam aged or not
  7. Intelligent diagnostic enable identify VIN automatically and access system quickly
  8. Guided function for Volkswagen and Audi
  9. Optional ADAS calibration function increases more revenue
  10. Advanced coding and programming function
  11. An extended solution to support TPMS service
  12. 2.4GHz & 5GHz dual band communication ensures quick connection
  13. Empower you to diagnose light, medium & heavy duty vehicles with Smartlink C
  14. The basic functions include read & clear OTC, remote diagnosis, Bi-directional control, live data graph, wireless software update and so on
  15. Build-in repair information and training video modules help to track and fix issue fast

Launch X431 PAD VII Extended Modules:

  1. P-600
  2. X PROG Immobilizer
  3. X PROG 3 Immobilizerr
  4. S2-2 Sensorbox
  5. O2-1 Scopebox
  6. Wi-Fi Printer
  7. X431 TSGUN
  8. BST360 Bluetooth Battery Tester



Specifications:

Item

X-431 PAD VII

Smartlink C

Operation System

Android 9.0

N/A

CPU

2.0GHz Octa-core

N/A

Display

13. 3" touch screen 1920x1 080

3. 5" touch screen 320x480

Memory

8GB

256M

Storage

256GB

8GB

Camera

Rear 13MP, Front BMP

N/A

Wi-Fi

Dual Band 2.4&5GHz

Dual Band 2.4&5GHz

Diagnostic Communication

WiFi

Wi-Fi&BT&USB

Working Temperature

0°C - 50 °C

0°C- 50 °C

Dimension

353x236x71 (mm)

204x11 0x45(mm)



Advanced ECU Coding and Online Coding

  1. J2534 ECU + Programming
  2. Flash Hidden Functions
  3. ECU Coding
  4. Guided Functions
  5. Auto Auth for FCA SGW
  6. Anti-Theft IMMO Service
