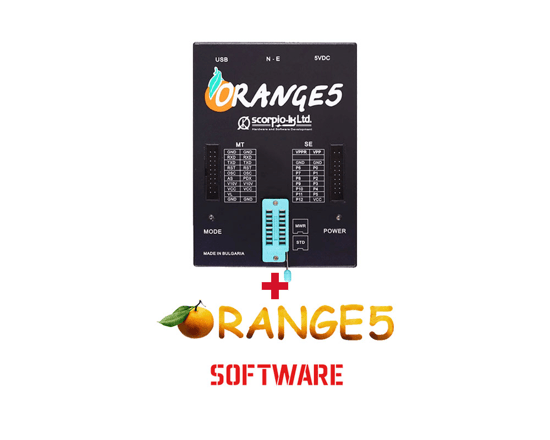

Orange5 Professional Programming Device for Memory and Microcontrollers

Orange5 is a professional programming device for memory and microcontrollers.  Unique feature of the current series programmers

• USB power supply (USB2.0/3.0)
• Universal easy to plug panel ZIF16 for EEPROM
• Control of contacts in the sockets
• Two expansions compatible with Orange4 and Omega MTRK
• Protection against overcurrent
• Overload voltage protection
• Two types of power supply: Standard (USB) and enhanced (USB + external power supply)
• Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V)
• Additional static 10V for microcontrollers
• High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
• Wave cycle generator with frequency ( up to 24 MHz) and out voltage(2.0...5.0V) adjustment.
• Capability of functional emulation of class CDC USB devices
• Built-in 32-bit virtual machine
• Supported interface: I2?, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
• Programmer is enclosed in a functional box
• Supported OS: Windows XP / 7 / 8 / 10

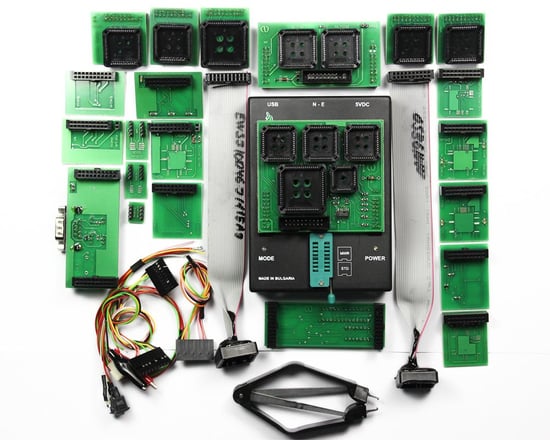

Included Adapters:

• 05BP2
• HC11A/Exx
• TMS
• K/CAN
• Lead with clips POMONA SOIC8
• SOIC8_14_93Cxx adapter
• SSOP8/DIP8
• Adapter 908AS60/AZ60 QFP64
• Adapter 68HC(7)05P3/E6
• Adapter 05B/X_705B/X QFP64 V2
• Adapter 11PA8/11E9 QFP64
• Adapter 68HC05H12
• Adapter 68HC11EA9
• Adapter 908AS60
• Adapter 9S12Dxx
• Adapter 912Dxx
• Adapter 9S12X
• Adapter 68HC11F1
• Adapter 68HC11KA4
• Lead 05B6 WDT VW immo incircuit
• Lead for EWS3 mask 0D46J
• Lead 912 (9S12) incircuit
• Lead 908 (08) incircuit
• Lead 705E6 incircuit
• Adapter TMS374C003A
• Adapter PCF7941
• PLCC Extractor
• K-line NATS cable
• Adapter MSP430
• Adapter SPI Flash 25Fxx (in SOIC8/16 body)
