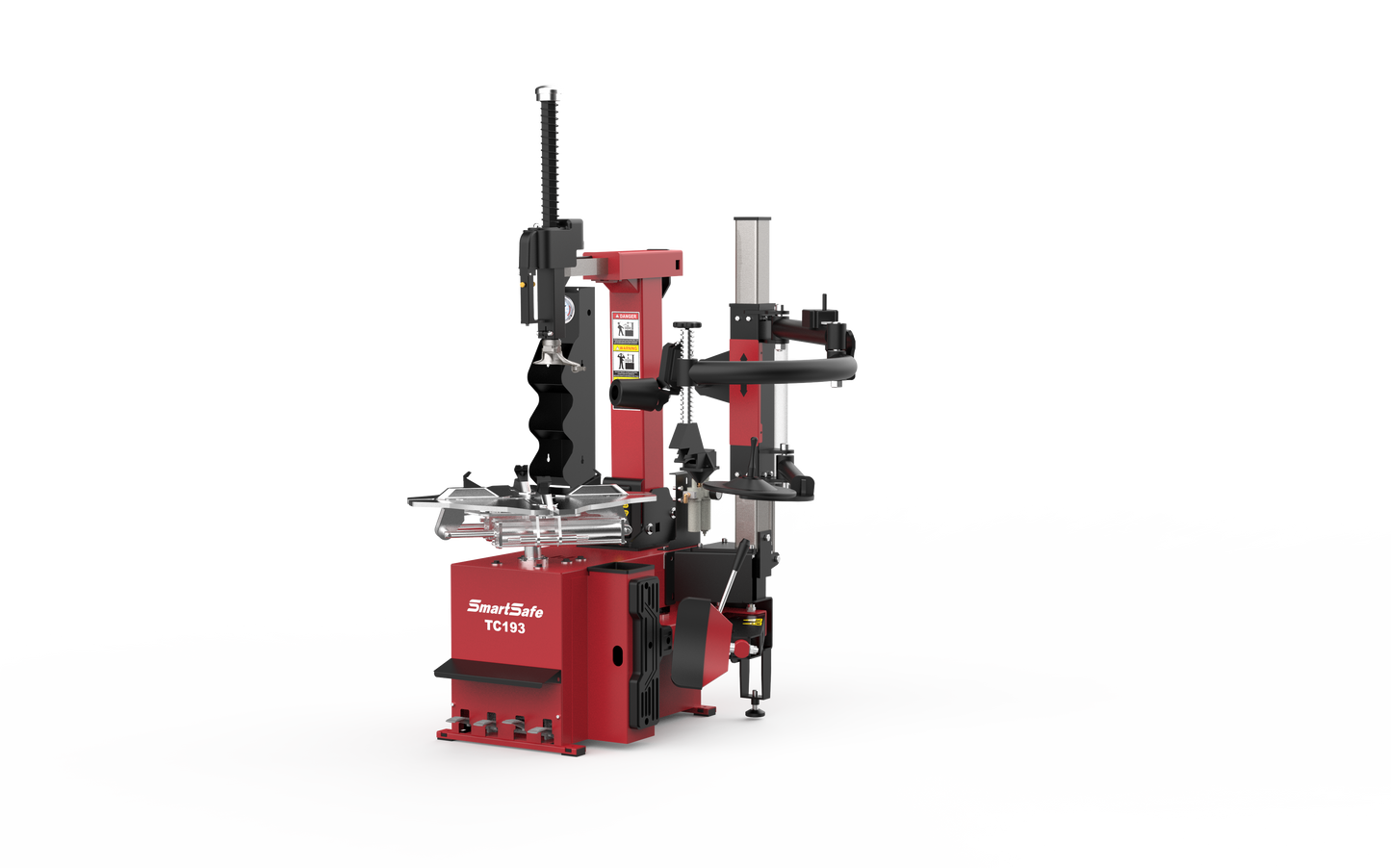

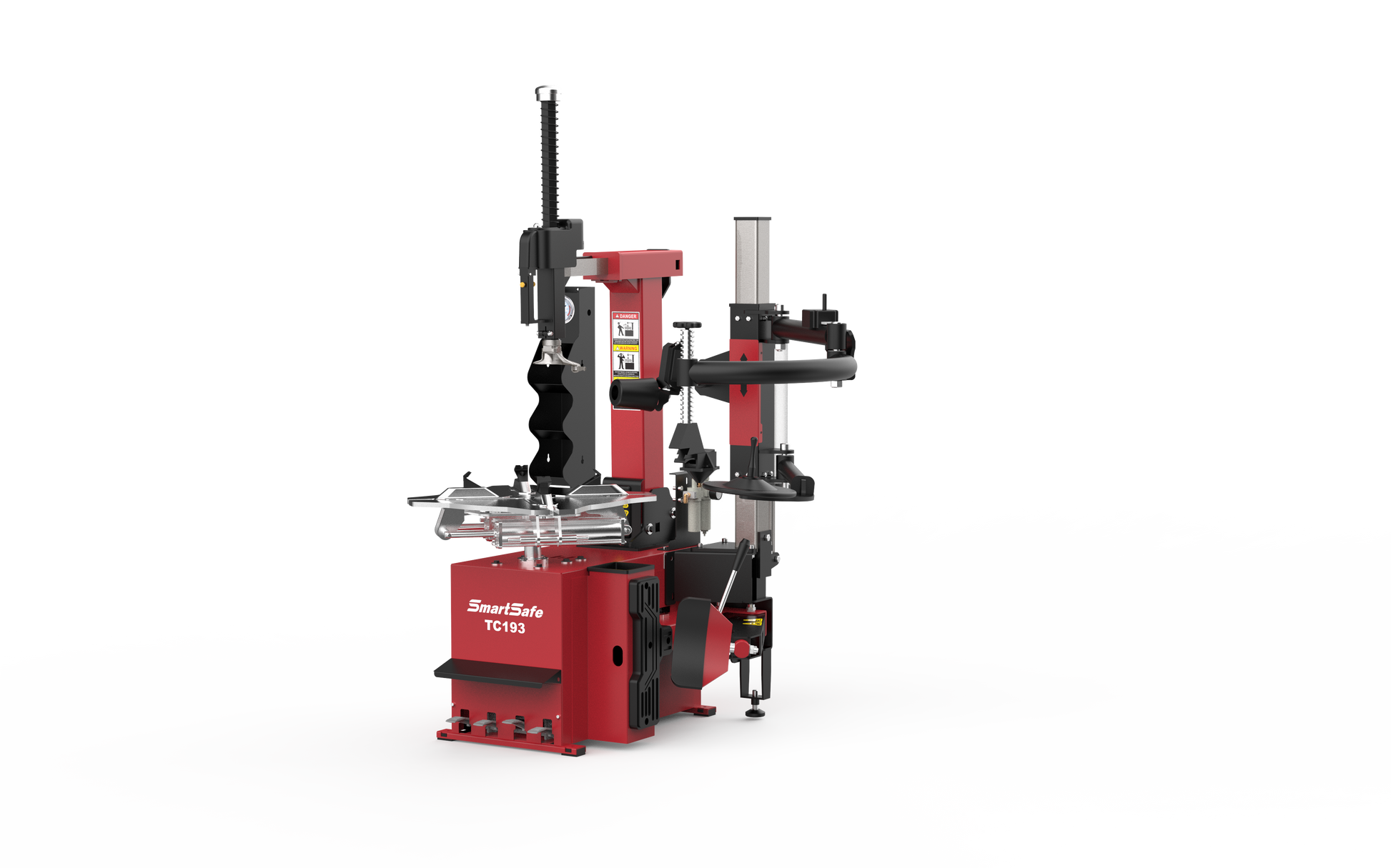

TC193 Reclining Type Deluxe Right Auxiliary Arm Tire Changer significantly enhances efficiency, safety, and adaptability in tire servicing, particularly excelling in handling specialized tires such as run-flat and wide-base tires.
Features:
- Advanced mechanical arm, the pulley part of the form of a set, embedded wear-resistant sliding block, with fine grinding square tube, so that the mechanical arm can run smoothly and freely;
- All joints of the auxiliary arm are mounted with vertebral bearings, smooth and smooth without lag;
- Thicker working plate, precision cast steel material claw, non-skid durable claw claw protection cover, high quality all-aluminum small cylinder;
- Tire removal structure, thickened shovel arm body, universal large shovel, high-quality large shovel protective cover, anti-slip rubber plate;
- The all-aluminum air cylinder can reduce machine vibration and minimize friction, thereby extending the service life of the cylinder;
- Special explosion-proof grade oil mist device, good pressure resistance effect and high safety factor;
- Optional automatic flip of the bird head.
Parameters
| Rim Diameter Range | 10-22" (Outer clamping size) 12-24" (Inner clamping size) |
Voltage | 110V / 220V / 380V |
| Max Tire width | 13" (330mm) | Power | 0.75 / 1.1Kw |
| Max tire diameter | 39" (1000mm) | Net weight / Gross weight | 300 / 346kg |
| Working air pressure | 8-10bar | Package size | 1070 × 980 × 1200mm |
| Operating panel speed | 7rpm | Container loading quantity | 20GP - 15pcs / 40HQ - 48pcs |
| Bead Breaker Pressure | 2500kgf |
