Product Description:

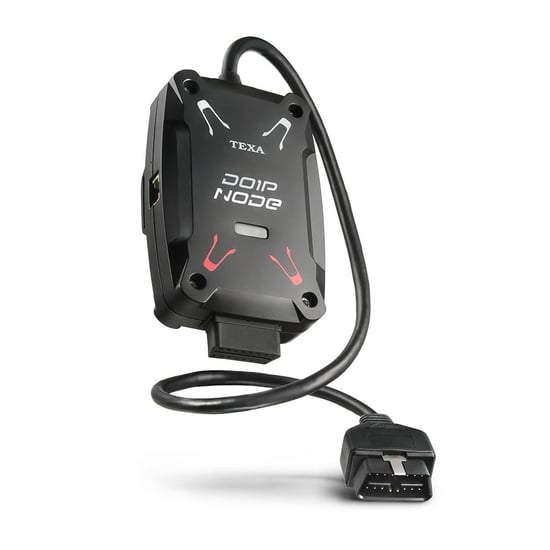

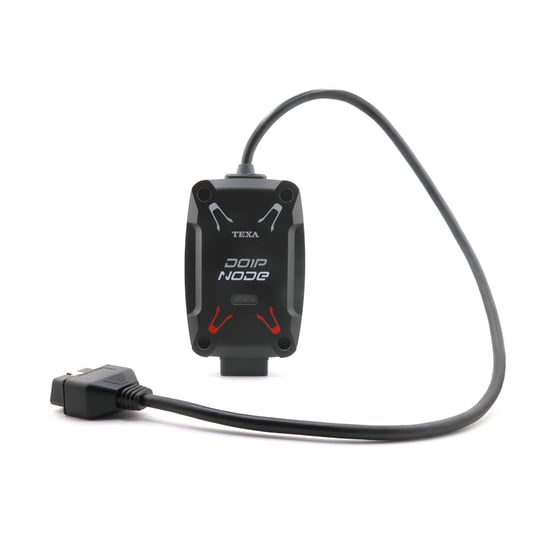

Texa DoIP NODE Multi-Brand Adapter D14110
The Texa DoIP NODE is a multi-brand adapter developed by TEXA that enables high-speed DoIP (Diagnosis Over Internet Protocol) diagnostic operations on vehicles equipped with Ethernet communication systems. This technology is increasingly being implemented by vehicle manufacturers alongside traditional CAN-BUS communication systems.
The DoIP NODE allows technicians to perform advanced diagnostics without replacing their existing TEXA diagnostic equipment. It simply integrates with compatible TEXA interfaces and automatically detects the communication protocol used by the vehicle.
With its compact design, the adapter can be easily inserted between the vehicle’s OBD socket and the TEXA Navigator interface, allowing seamless communication with vehicles that require DoIP protocol diagnostics.
Texa DoIP NODE Adapter Features:
- Supports DoIP (Diagnosis Over Internet Protocol) vehicle diagnostics
- Compatible with TEXA Navigator TXT and Navigator NANO S interfaces
- Allows diagnostics on vehicles equipped with Ethernet communication architecture
- Automatic protocol detection
- Compact design for easy installation between OBD socket and diagnostic interface
- Ideal for workshops needing DoIP compatibility without replacing existing TEXA equipment
IDC5 Diagnostic Software:
- Complete and intuitive diagnostic software platform
- Guides technicians through every diagnostic phase
- Fast communication with supported vehicles
- Supports fault identification and repair procedures
- Professional and user-friendly interface
Texa DoIP NODE Technical Specifications:
| Manufacturer | TEXA S.p.A. |
| Product Name | DoIP NODE |
| Power Supply | 12 – 24 Vdc via vehicle OBD socket |
| Power Consumption | 500 – 900 mA (12 – 24 Vdc) |
| Wireless Connectivity | WiFi IEEE 802.11 b/g/n (2.4 GHz) |
| Operating Frequency | 2400 – 2483.5 MHz |
| Max RF Power | 10 dB |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 10% – 80% (non-condensing) |

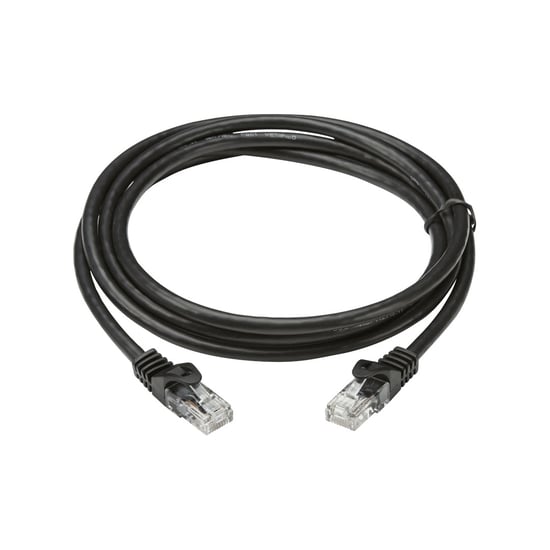

| Diagnostic Connectors | Male OBD ×1, Female OBD ×1, RJ45 ×1 (2000 mm cable) |
| Female OBD Output | 12 – 24 Vdc, 500 mA max |
| RJ45 Output | 3.7 Vdc, 10 mA max |
| User Interface | 3 Bi-colour LED indicators |
