Product Description:

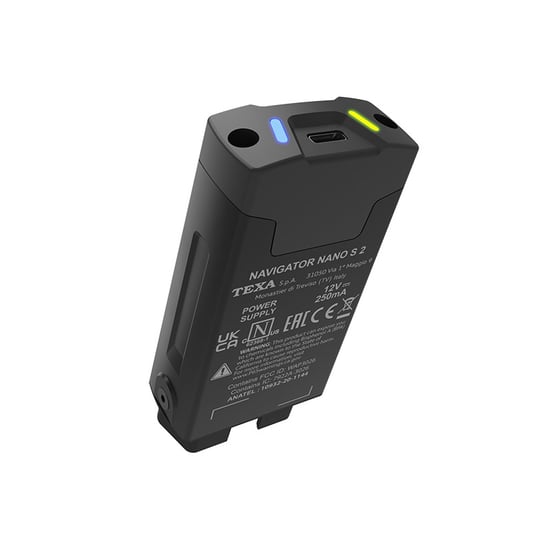

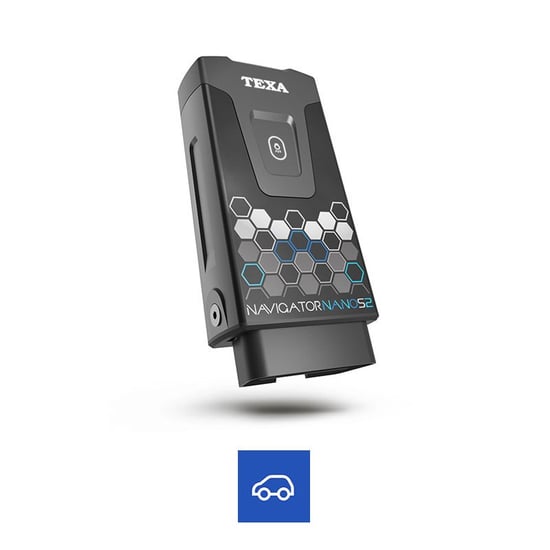

Texa NAVIGATOR NANO S2 Vehicle Interface is the simplest solution among the vehicle interfaces offered by TEXA. It is a compact and powerful diagnostic interface specifically designed for professional automotive diagnostics in the car environment.
Note: Only supports IDC6 Plus Car Softwares
NAVIGATOR NANO S2 is small, robust, lightweight and ergonomic, making it ideal for daily diagnostic operations in modern workshops. Every component has been carefully engineered to meet the requirements of technicians who need a reliable and efficient diagnostic interface.
The device integrates a latest-generation processor, 8 GB internal storage and advanced connectivity including Bluetooth 5.0 technology. These features allow fast communication with vehicle control units and efficient processing of diagnostic data.
NAVIGATOR NANO S2 also supports modern vehicle communication standards including CAN FD with simultaneous management of three channels and DoIP communication protocols, ensuring compatibility with the latest vehicle architectures.
Technical Specifications:
| Processor | CORTEX M7 STM32H735AGI6 up to 550 MHz, 1MB FLASH, 564KB RAM |
| SRAM | 16 MBits organized in 1024K x 16 bits |
| eMMC | 8 GByte on an 8-bit bus |
| External Flash Memory | 16 Mbit flash NOR organized as 1M x 16bit |
| Internal Battery | Lithium polymer single cell, 3.7 V 130 mA/h (LP401429-PCM-LD) |
| Vehicle Battery | 12 Vdc system management |
| Nominal Power Supply Voltage | OBD: 12 V direct voltage |
| Wireless Communication | Bluetooth 5.0 Class 1 |
| Operating Frequency Band | 2402 – 2480 MHz |
| Maximum RF Power | 10 dBm |
| Wired Connection | Virtual COM via USB Full Speed, USB-C 5V |
| Electronic Switch | 2-way, 13 independent positions |
| Diagnostic Connector | OBD |
| Supported Protocols | Blink codes, K/L ISO9141-2 ISO14230, CAN FD 11898-2:2016 (3 channels), CAN ISO11898-3, CAN SAE J2411 Single Wire, SAE J1850 PWM and VPW, Ethernet DoIP ISO13400-3 |
| Power Supply Connector | OBD |
| User Interface | LED RGB x4, Buzzer |
| Consumption | 12 V direct voltage, 250 mA |
| Operating Temperature | 0 °C – 40 °C |
| Storage Temperature | -20 °C – 60 °C |
| Battery Charging Temperature | 0 °C – 45 °C |
| Operating Moisture | 10% – 80% without condensation |
| Weight | 72 g |
| Environmental Conditions | Use: internal and external, Altitude < 2000 m, Supply voltage fluctuation ±10%, Overvoltage category II, Pollution degree 2, Maximum humidity 80% up to 31 °C decreasing to 50% at 40 °C |
| Directives | RED 2014/53/EU, RoHS 2011/65/EU and Delegated Directive 2015/863/EU |
| Regulations | Radio Equipment Regulation 2017 No.1206, RoHS Regulation 2012 No.3032 |
| Electromagnetic Compatibility | ETSI EN 301 489-1, ETSI EN 301 489-17 |
| Radio Systems | ETSI EN 300 328 |
| Electrical Safety | EN 62368-1, EN 62368-3, EN 62311 |
