Product Description:

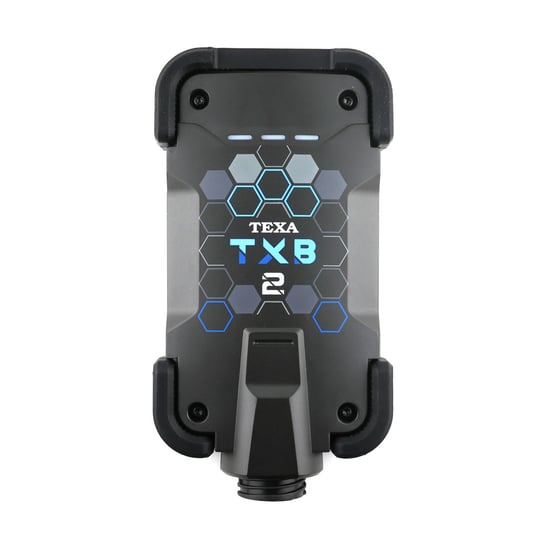

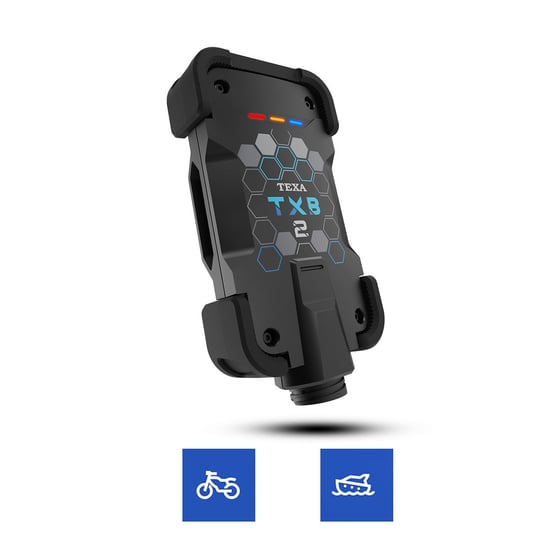

Texa NAVIGATOR TXB 2 Vehicle Interface is a latest-generation vehicle interface specifically developed for the bike and marine environments, offering fast and accurate diagnostic communication with vehicle control units.
Note: Only supports IDC6 Plus Marine + IDC6 Plus Bike softwares.
NAVIGATOR TXB 2 is designed to provide professional technicians with a powerful and reliable diagnostic interface for motorcycles and marine vehicles. The advanced processor used makes the device faster and more powerful, enabling quick and precise processing of data from vehicle control units, including operation in PassThru mode.
New connections
The latest-generation Bluetooth technology and a new USB-C socket guarantee faster connections and optimized data transfer. The interface also features new RGB LED indicators for improved usability.
Its advanced hardware architecture supports all current communication protocols and the integrated 16-pin CPC connector allows the use of all TEXA BIKE diagnostic cables. In addition to standard diagnostics, the device also allows recording the diagnostic session while the vehicle is moving.
An inseparable pair
IDC6 is TEXA’s powerful diagnostic software designed to manage all the operations normally carried out in a workshop.
Developed specifically for the BIKE and MARINE sectors, IDC6 allows technicians to perform essential operations including:
- Self-diagnosis for reading and clearing error codes
- Display of engineering parameters and ECU status
- Component activations
- Adjustments and system configurations
- Warning light deactivation
- Control unit configuration
- Fuel trim and injection timing adjustments
- Key programming
Thanks to TEXA’s global network developed over more than 20 years, IDC6 provides exceptional coverage of vehicles currently in circulation.
A continuously advanced diagnostic system
IDC6 includes advanced functions such as Global Scan, which scans the vehicle to detect installed control units and identify possible errors. Another powerful feature is Freeze Frame, which displays parameters and operational data showing the exact conditions of the vehicle when a fault occurs.
The software also includes environment-specific functions designed for different sectors, such as lever configuration for the MARINE environment and the CIP function for the BIKE environment.
Technical Features:
| Model | NAVIGATOR TXB 2 |
| Manufacturer | TEXA S.p.A. |
| Processor | CORTEX M7 STM32H735AGI6 up to 550 MHz, 1MB Flash, 564KB RAM |
| SRAM Memory | 16 MBits organized in 1024K × 16 bits |
| Additional SRAM | 256 MBits organized in 4096K × 4 banks × 16 bits |
| eMMC Memory | 8 GByte on an 8-bit bus |
| Vehicle Battery | System management at 12 V and 24 V |
| External Power Supply | 12 ÷ 24 V |
| USB Communication | USB 2.0 high speed 5 V / 500 mA |
| Wireless Connection | Bluetooth 5.0 Class 1 |
| Operational Band | 2402 ÷ 2480 MHz |
| Maximum RF Power | 10 dBm |
| Electronic Switch | 2-way, 13 independent positions |
| Diagnostic Connector | 16-pin CPC |
| Supported Protocols | Blink codes, K/L ISO9141-2, ISO14230, FD CAN 11898-2:2016 (2 channels), CAN ISO11898-3 Low Speed, CAN SAE J2411 Single Wire, SAE J1850 PWM, SAE J1850 VPW, SAE J1708, RS232 |
| Visible Warnings | RGB LED ×3 |
| 12V Consumption | 300 mA |
| 24V Consumption | 100 mA |
| Operating Temperature | 0 ÷ 50 °C |
| Storage Temperature | −20 ÷ 60 °C |
| Operating Moisture | 10 ÷ 80% without condensation |
| Directives | RED 2014/53/EU, RoHS 2011/65/EU, Delegated Directive 2015/863/EU |
| Safety | EN 62368-1, EN 62311 |
| Electromagnetic Compatibility | EN 301 489-1, EN 301 489-17 |
| Radio Systems | EN 300 328 |
| Weight | 215 g |
