Product Description:

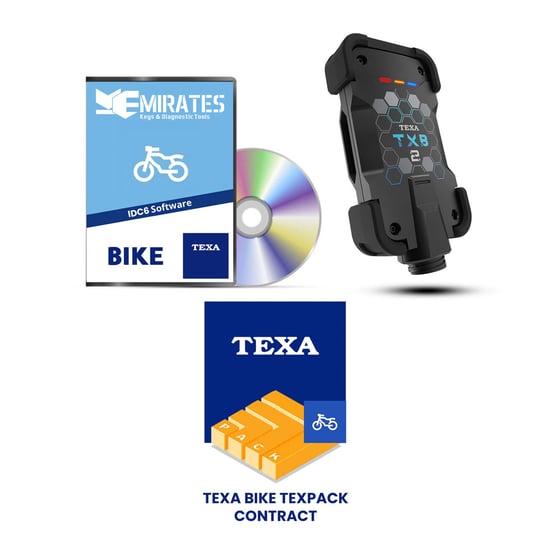

Texa NAVIGATOR TXB 2 With Full Bike Activation includes the Texa NAVIGATOR TXB 2 Vehicle Interface together with IDC6 Bike License (including HASP key) for PC and TEXA BIKE TEXPACK Contract, providing a complete professional diagnostic solution for motorcycle workshops.
Note: Only supports IDC6 Plus Marine + IDC6 Plus Bike Softwares
Texa NAVIGATOR TXB 2 is a latest-generation vehicle interface specifically developed for the bike and marine environments. The advanced processor used makes it faster and more powerful, enabling quick and precise processing of data from vehicle control units, including operation in PassThru mode.
New connections
The latest-generation Bluetooth technology and a USB-C socket guarantee faster connection and optimized data transfer, while the RGB LED indicators improve usability and visual communication with the device.
Its hardware architecture supports all current communication protocols and the integrated 16-pin CPC connector allows the use of all BIKE diagnostic cables. In addition to standard diagnostics, the interface also allows recording diagnostic sessions while the vehicle is moving.
An inseparable pair
IDC6 is TEXA’s professional diagnostic software designed to manage the operations normally carried out in a workshop.
Designed specifically for the BIKE and MARINE sectors, it allows technicians to perform essential diagnostic operations including reading and clearing fault codes, viewing engineering parameters and ECU status, performing activations, adjustments and configuration of installed devices, deactivating warning lights, ECU configuration, fuel trim and injection timing adjustments, and key programming.
Thanks to TEXA’s global network built over more than 20 years, IDC6 guarantees extensive vehicle coverage for motorcycles and marine engines currently in circulation.
Advanced diagnostic functions
IDC6 includes advanced features such as Global Scan, which scans the vehicle to detect installed control units and possible errors, and Freeze Frame which displays parameters and operational data indicating the conditions of the vehicle at the time a fault occurred.
The system also includes specific functions developed for different environments such as lever configuration for marine systems and the CIP function for bike diagnostics.
Technical Specifications:
| Model | NAVIGATOR TXB 2 |
| Manufacturer | TEXA S.p.A. |
| Processor | CORTEX M7 STM32H735AGI6 up to 550 MHz, 1MB FLASH, 564KB RAM |
| SRAM Memory | 16 MBits organized in 1024K x 16 bits |
| Additional SRAM | 256 MBits organized in 4096K x 4 banks x 16 bits |
| eMMC Memory | 8 GByte on an 8-bit bus |
| Vehicle Battery | System management at 12 V and 24 V |
| External Power Supply | 12 ÷ 24 V |
| USB Communication | USB 2.0 high speed 5 V / 500 mA |
| Wireless Connection | Bluetooth 5.0 Class 1 |
| Operational Band | 2402 ÷ 2480 MHz |
| Maximum RF Power | 10 dBm |
| Electronic Switch | 2-way, 13 independent positions |
| Diagnostic Connector | 16-pin CPC |
| Supported Protocols | Blink codes, K/L ISO9141-2 ISO14230, FD CAN 11898-2:2016 (2 channels), CAN ISO11898-3 Low Speed, CAN SAE J2411 Single Wire, SAE J1850 PWM, SAE J1850 VPW, SAE J1708, RS232 |
| Visible Warnings | RGB LED ×3 |
| 12V Consumption | 300 mA |
| 24V Consumption | 100 mA |
| Operating Temperature | 0 ÷ 50 °C |
| Storage Temperature | -20 ÷ 60 °C |
| Operating Moisture | 10% – 80% without condensation |
| Directives | RED 2014/53/EU, RoHS 2011/65/EU and Delegated Directive 2015/863/EU |
| Safety | EN 62368-1, EN 62311 |
| Electromagnetic Compatibility | EN 301 489-1, EN 301 489-17 |
| Radio Systems | EN 300 328 |
| Weight | 215 g |
