Product Description:

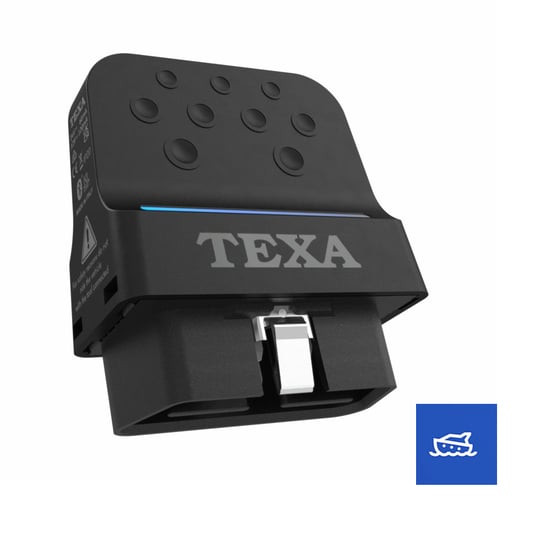

Texa NAVIGATOR TXB ZERO MARINE Kit is a diagnostic interface dedicated to the diagnosis of outboard engines and personal watercrafts, providing a versatile and reliable solution for marine technicians and specialized workshops.
Note: Only supports IDC6 Plus MARINE Softwares
Navigator TXB ZERO is specifically designed for marine diagnostics and ensures compatibility with a wide range of outboard engines and jet skis. Its design provides a flexible and efficient solution for repair and maintenance professionals working in the marine sector.
The device integrates advanced technology that allows technicians to perform and record diagnostic tests even while the engine is running or the vehicle is moving, improving diagnostic accuracy and operational efficiency.
A custom-developed diagnostic software

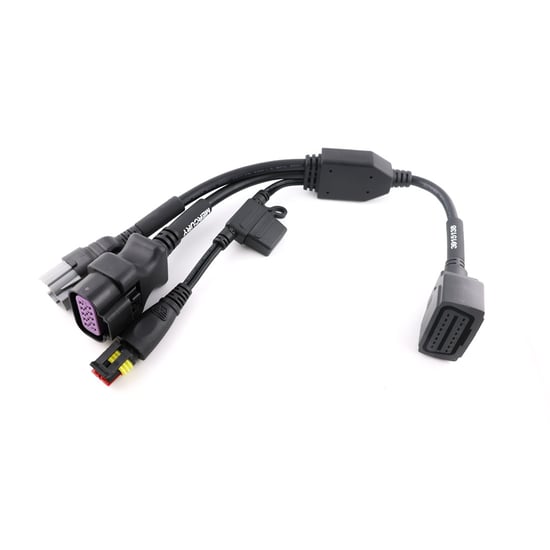

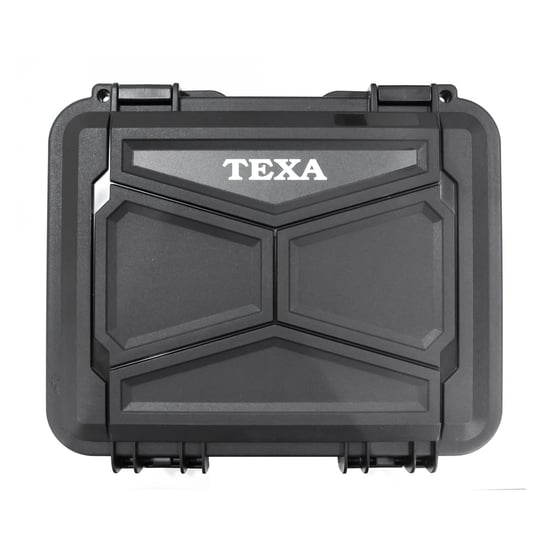

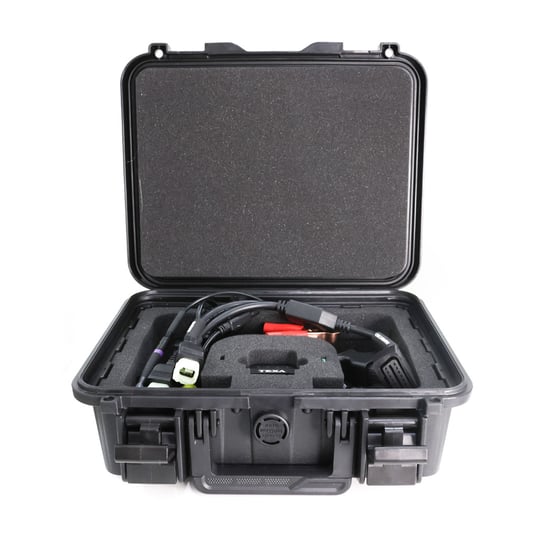

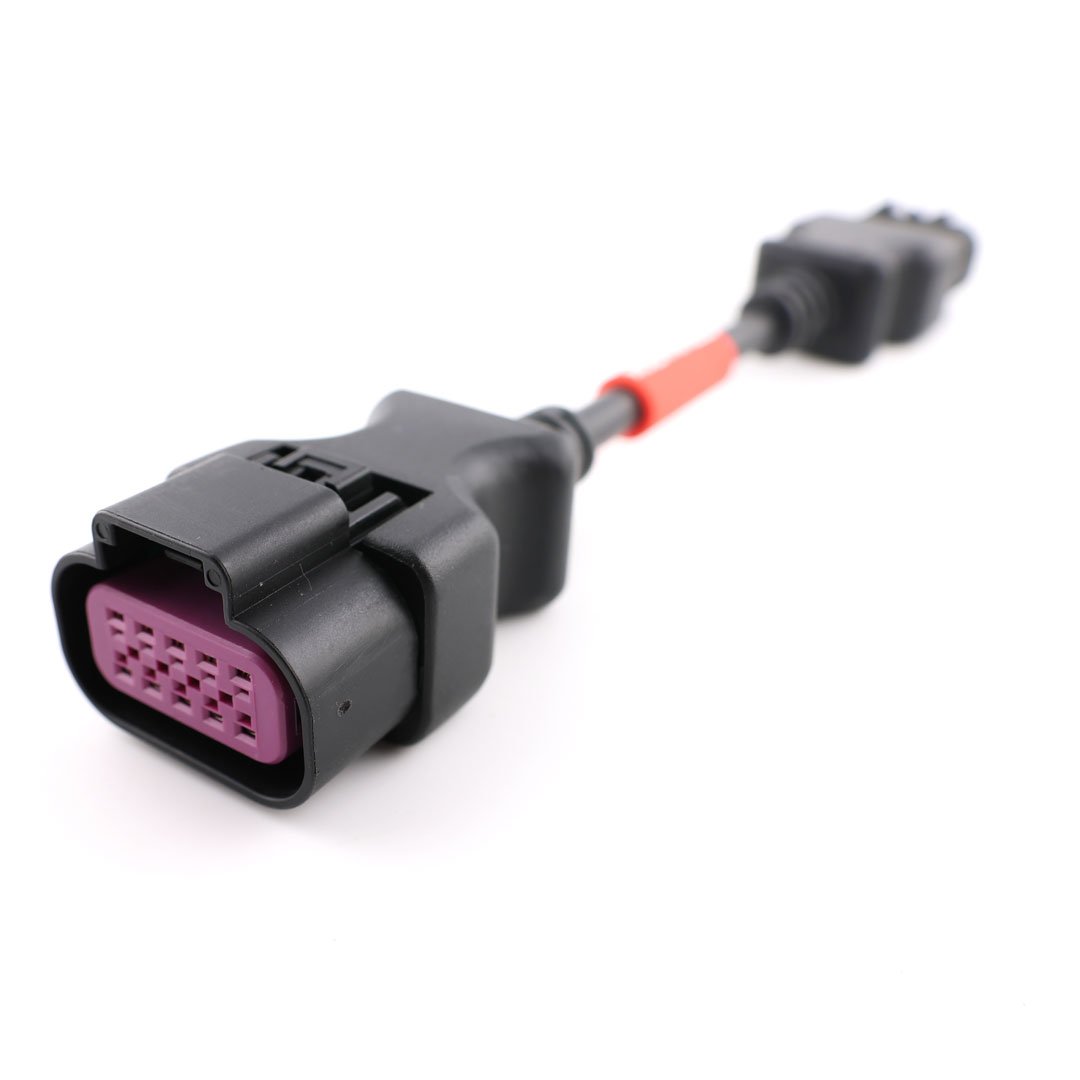

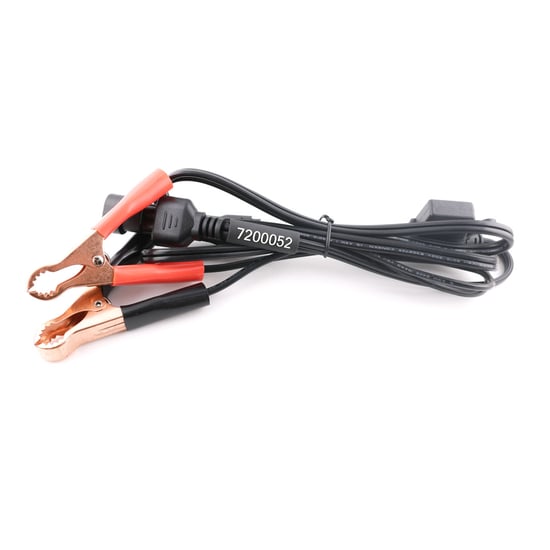

TXB ZERO is supplied in a practical carrying case that includes the necessary cables required to diagnose the many outboard motors and personal watercraft supported by the IDC6 MARINE diagnostic software.
The IDC6 MARINE software is specifically developed for marine applications and includes extensive technical resources such as technical data, interactive wiring diagrams, technical sheets, nominal parameter values linked to error codes, and additional professional diagnostic information.
Technical Specifications:
| Model | NAVIGATOR TXB Zero |
| Manufacturer | TEXA S.p.A. |
| Processor | ARM Cortex M4 (STM32F439ZIY6) |
| Memory | SDRAM: 8 MB, Flash NAND: 4 GB |
| Vehicle Battery | 12Vdc and 24Vdc system management |
| External Power Supply | 12 / 24 Vdc |
| Wireless Connection | Bluetooth Classic (2.1) |
| Operational Band | 2400 – 2483.5 MHz |
| Maximum RF Power | 4 dBm |
| Diagnostic Connector | OBD ISO15031-03 for 24 V systems |
| Supported Automotive Bus Types | 4 HS CAN transceivers connected to OBD pins 3-11, 1-9, 12-13, 6-14 (individually enabled), 1 J1708 transceiver connected to pins 12-13, 1 ISO9141-2 ISO14230 transceiver with 60 mA current protection connected to pins 3 or 7 |
| Visible Warnings | Green/red bi-colour LED ×1, Blue LED ×1 |
| 12V Consumption | < 120 mA |
| 24V Consumption | < 60 mA |
| Operating Temperature | 0 ÷ 50 °C |
| Storage Temperature | -20 ÷ 60 °C |
| Operating Moisture | 10% ÷ 80% without condensation |
| Weight | 15 g |
