Product Description:
Texa NAVIGATOR TXB ZERO With Full MARINE Activation includes the Texa NAVIGATOR TXB ZERO Marine Kit with Marine Software and TEXA MARINE TEXPACK Contract, providing a complete diagnostic solution for marine engines and personal watercrafts.
Navigator TXB ZERO is a diagnostic interface dedicated to the diagnosis of outboard engines and personal watercrafts. Its design ensures compatibility with a wide range of marine engines, offering a versatile and flexible solution for repair and maintenance performed by specialized marine technicians.
The device integrates advanced technology that allows recording diagnostic tests even while the vehicle or engine is moving, improving the efficiency and accuracy of diagnostic procedures.
A custom-developed diagnostic software

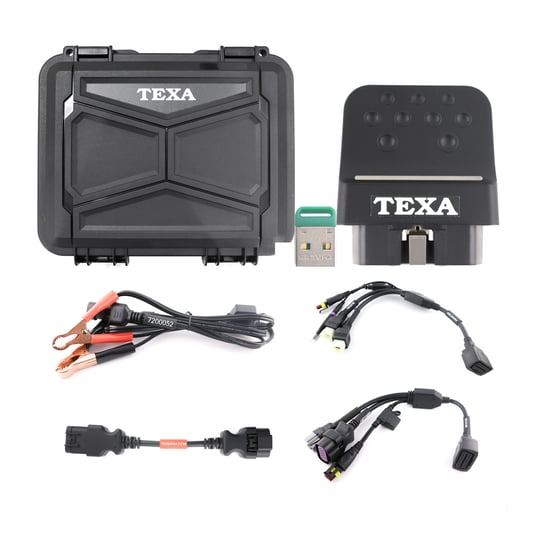

TXB ZERO is supplied in a practical carrying case containing the required cables to diagnose many outboard engines and jet skis supported in the IDC6 MARINE diagnostic software.
The IDC6 MARINE software has been specifically developed for marine diagnostics and includes extensive professional resources such as technical data, interactive wiring diagrams, technical sheets, nominal parameter values associated with fault codes, and additional advanced diagnostic information.
Technical Specifications:
| Model | NAVIGATOR TXB Zero |
| Manufacturer | TEXA S.p.A. |
| Processor | ARM Cortex M4 (STM32F439ZIY6) |
| Memory | SDRAM: 8 MB, Flash NAND: 4 GB |
| Vehicle Battery | 12Vdc and 24Vdc system management |
| External Power Supply | 12 / 24 Vdc |
| Wireless Connection | Bluetooth Classic (2.1) |
| Operational Band | 2400 – 2483.5 MHz |
| Maximum Radio Frequency Power Transmitted | 4 dBm |
| Diagnostic Connector | OBD ISO15031-03 for 24 V systems |
| Supported Automotive Bus Types | 4 HS CAN transceivers connected to OBD pins 3-11, 1-9, 12-13, 6-14 individually enabled, 1 J1708 transceiver connected to pins 12-13, 1 ISO9141-2 ISO14230 transceiver with 60 mA current protection connected to pins 3 or 7 |
| Visible Warnings | Green/red bi-colour LED ×1, Blue LED ×1 |
| 12V Consumption | < 120 mA |
| 24V Consumption | < 60 mA |
| Operating Temperature | 0 ÷ 50 °C |
| Storage Temperature | -20 ÷ 60 °C |
| Operating Moisture | 10% ÷ 80% without condensation |
| Weight | 15 g |
