Product Description:

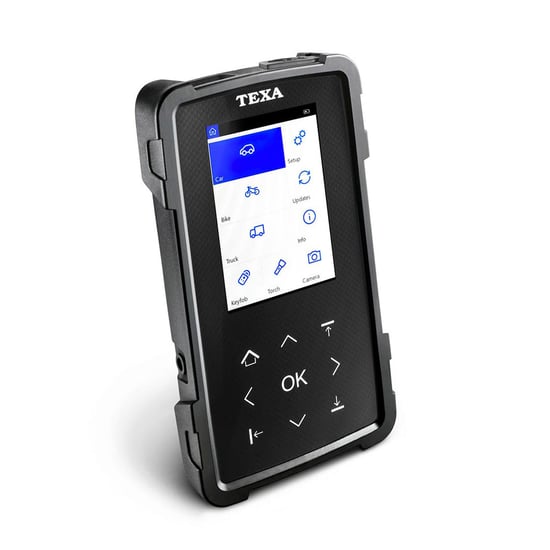

Texa TPS2 TPMS Sensors Tool is a complete solution designed for professional tyre workshops, providing advanced TPMS service and sensor management capabilities.
TPS2 is a professional tool developed by TEXA that provides tyre fitters with all the functions required for TPMS sensor diagnostics and management while ensuring reliable and efficient operation.
The device is designed to communicate quickly and easily even with sensors that require higher power during activation, ensuring accurate and effective TPMS servicing.
The tool includes a 5 megapixel HD camera with autofocus that allows technicians to capture images to attach to customer reports. The camera can also be used to read QR codes when necessary.
TPS2 features 4 GB of internal memory and includes a microSD card slot. This allows users to store reports related to maintenance operations and efficiently manage seasonal tyre change records for customers’ vehicles.
The device supports diagnostics on three vehicle categories:
- Cars
- Motorcycles
- Trucks
TPS2 communicates with TPMS sensors using two different methods: manual sensor selection and TWS2 technology, the latest evolution of TEXA’s TWS function, offering faster and more efficient communication.
The device is robust, fast and easy to operate. It features a large display that allows technicians to view all necessary information clearly on a single screen, making it an ideal solution for professional TPMS service operations.
TPS2 communicates with the TPMS control unit via Bluetooth (Dual Mode). It also includes a Wi-Fi module that allows connection to the internet to download software updates, expand the vehicle database and add new software features.
The tool is supplied with a dedicated software utility used for device activation, manual consultation, update management and operation of the TEXA TYRE MANAGER software.
Technical Specifications:
| Processor | Cortex M7 |
| Memory | RAM 8 MB, Flash 4 GB |
| Display | LCD IPS 3.5″ 480 × 320 |
| Camera | 5 MP autofocus with LED flash |
| Transmission Frequency | 125 kHz |
| Reception Frequencies | 433 MHz – 434 MHz |
| Cable Communication | USB |
| Wireless Communication | Class 2 dual mode Bluetooth with built-in antenna, WiFi 802.11 b/g |
| Battery | Li-ion 2500 mAh – 3.7 V |
| Autonomy | Approximately 10 hours |
| Consumption | USB connector 500 mA max |
| Charging Time | Approximately 5 hours with the device switched off |

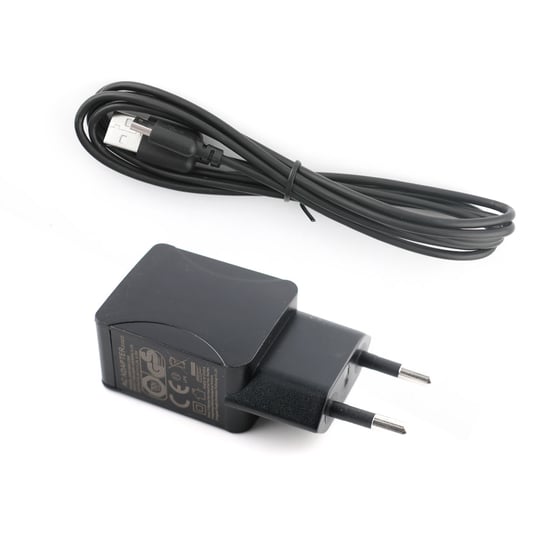

| External Charger | Model K06S050120G, 230 Vac / 5 Vdc 1.2 Adc |
| Environmental Conditions | Operating temperature: -10 °C ÷ 45 °C, Storage temperature: -20 °C ÷ 60 °C, Charging temperature: 0 °C ÷ 45 °C, Operating moisture: 10% ÷ 80% without condensation |
| Weight | 300 g |
