Product Description:

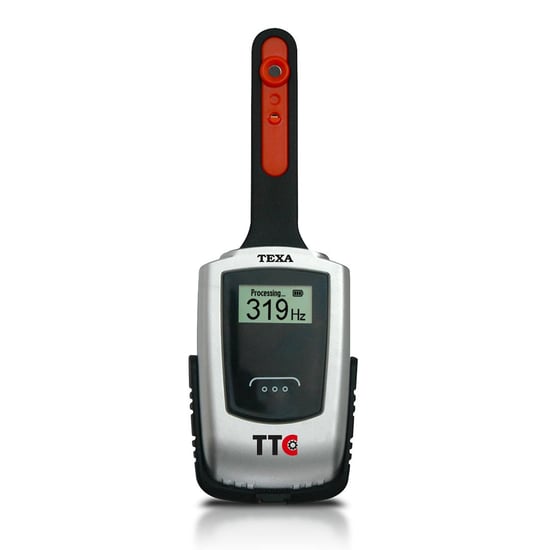

Texa TTC Motorcycle Cam Belt Tension Tester is a professional device designed to verify the correct engine timing belt tension, engineered according to Ducati specifications and specifically developed for Ducati motorcycles.
TTC is designed to accurately verify the correct tensioning of the engine timing belt. Proper timing belt tension is essential to ensure engine reliability, performance and safety.
Using a professional measurement device such as TTC guarantees precise installation and adjustment of the timing belt, allowing technicians to perform highly accurate and professional maintenance services.
The device performs measurements using a highly sensitive microphone that analyzes the resonance frequency produced by the belt, allowing accurate determination of the belt tension.
Small, practical and fast

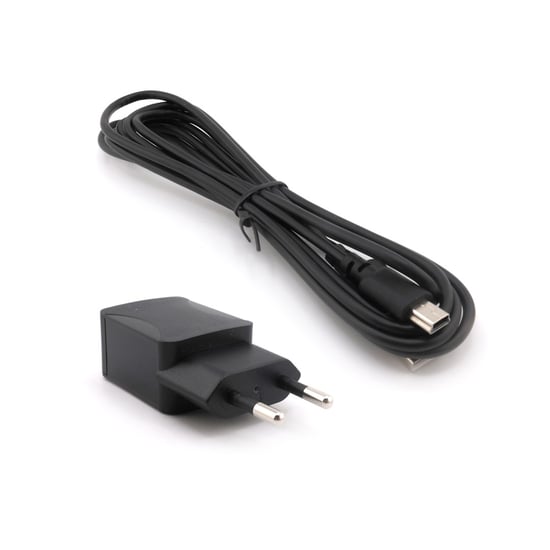

TTC is completely wireless and powered by a rechargeable internal battery, with the charger supplied as standard. The device does not require any additional tools, as the measurement results are displayed directly on the integrated graphic display.
Once the measurement process is complete, the device emits an audible beep to notify the technician.
Its compact and lightweight design combines advanced technology with practical usability, allowing motorcycle workshops to perform precise timing belt tension checks quickly and efficiently.
Technical Specifications:
| Micro Controller | ARM 32 bit |
| Display | Backlit LCD |
| Internal Battery | 3.7 V 1000 mAh Li-ion |
| Recharge | USB port, max consumption 470 mA |
| Range | 6 hours of continuous operation |
| Resolution | 3 Hz |
| Accuracy | ± 1.5 Hz |
| Environmental Conditions | Operating temperature: -10 °C ÷ 40 °C, Storage temperature: -20 °C ÷ 60 °C, Charging temperature: 0 °C ÷ 45 °C, Operating moisture: 10% ÷ 80% without condensation |
| Dimensions | 202.7 × 70.6 × 31.3 mm |
| Weight | 300 g |
