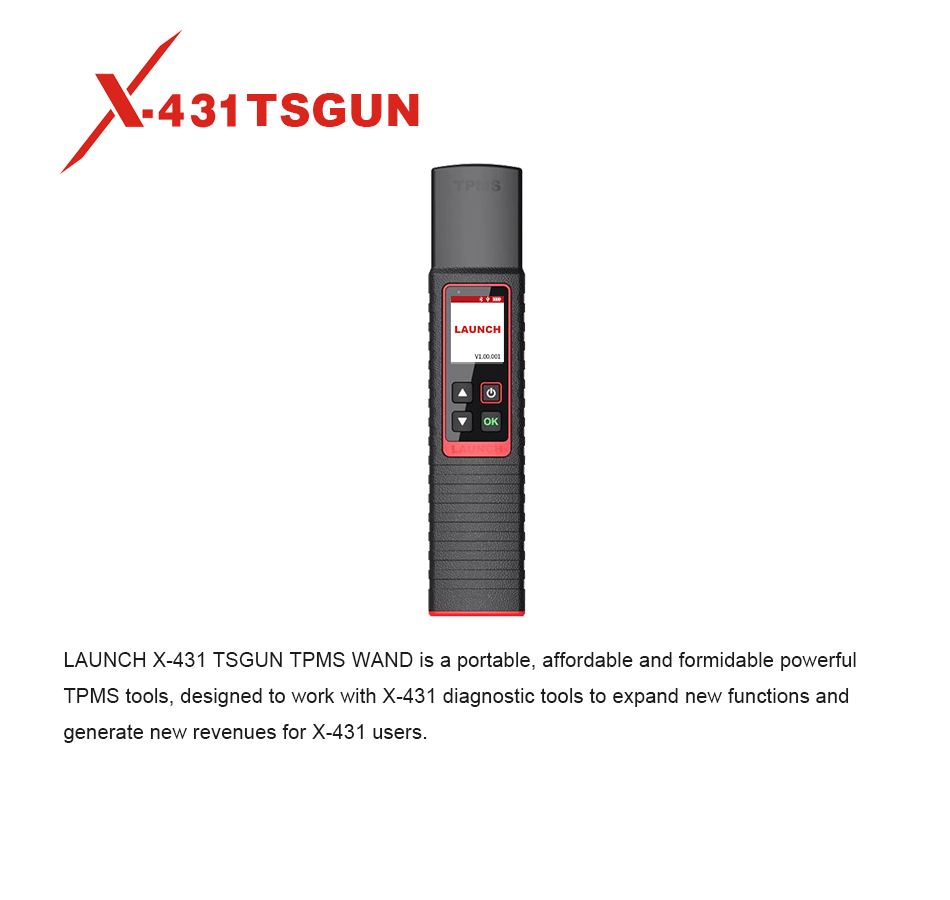

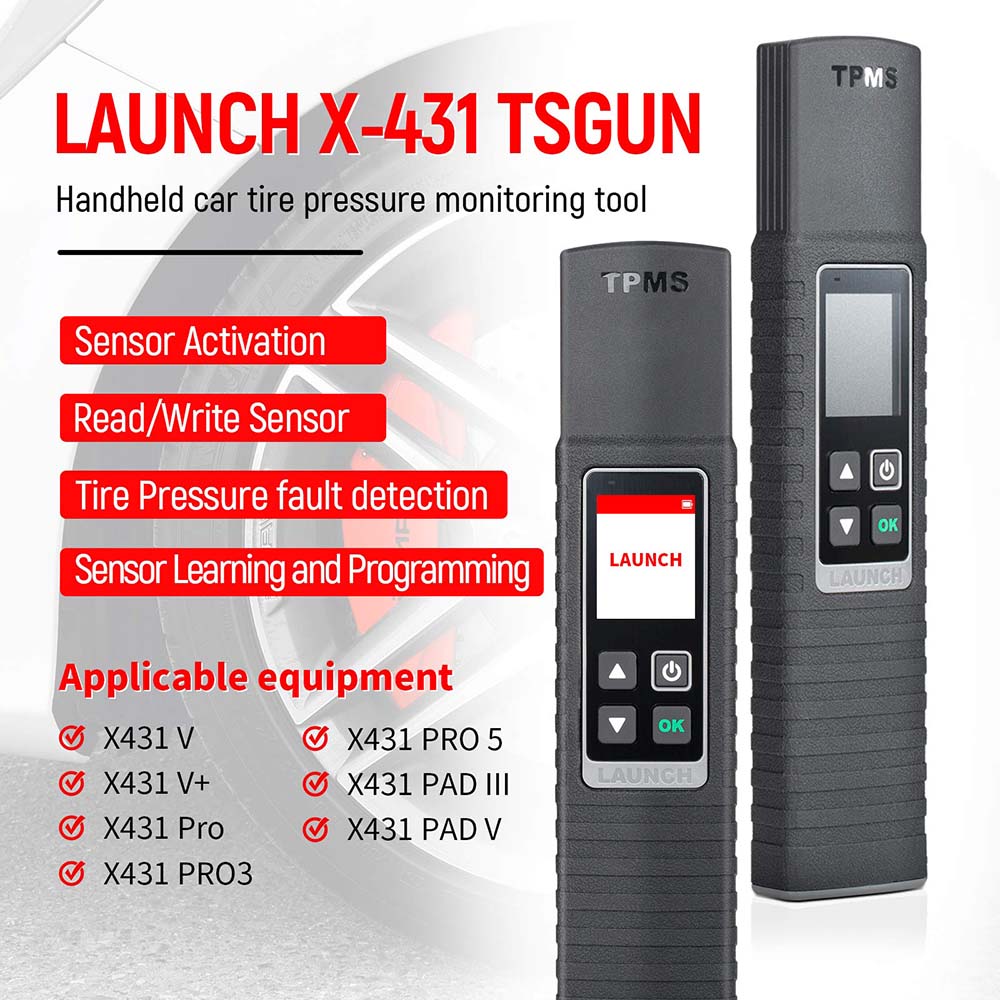

Launch TSGUN is a professional device with an integrated TPMS sensor. Functions include sensor activation, reading, programming, and learning.
It will read tire information at both high and low frequencies.

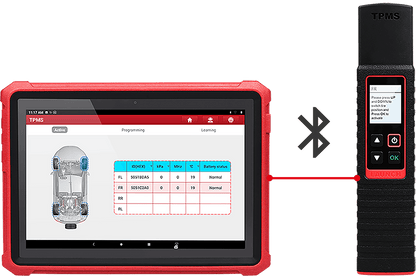

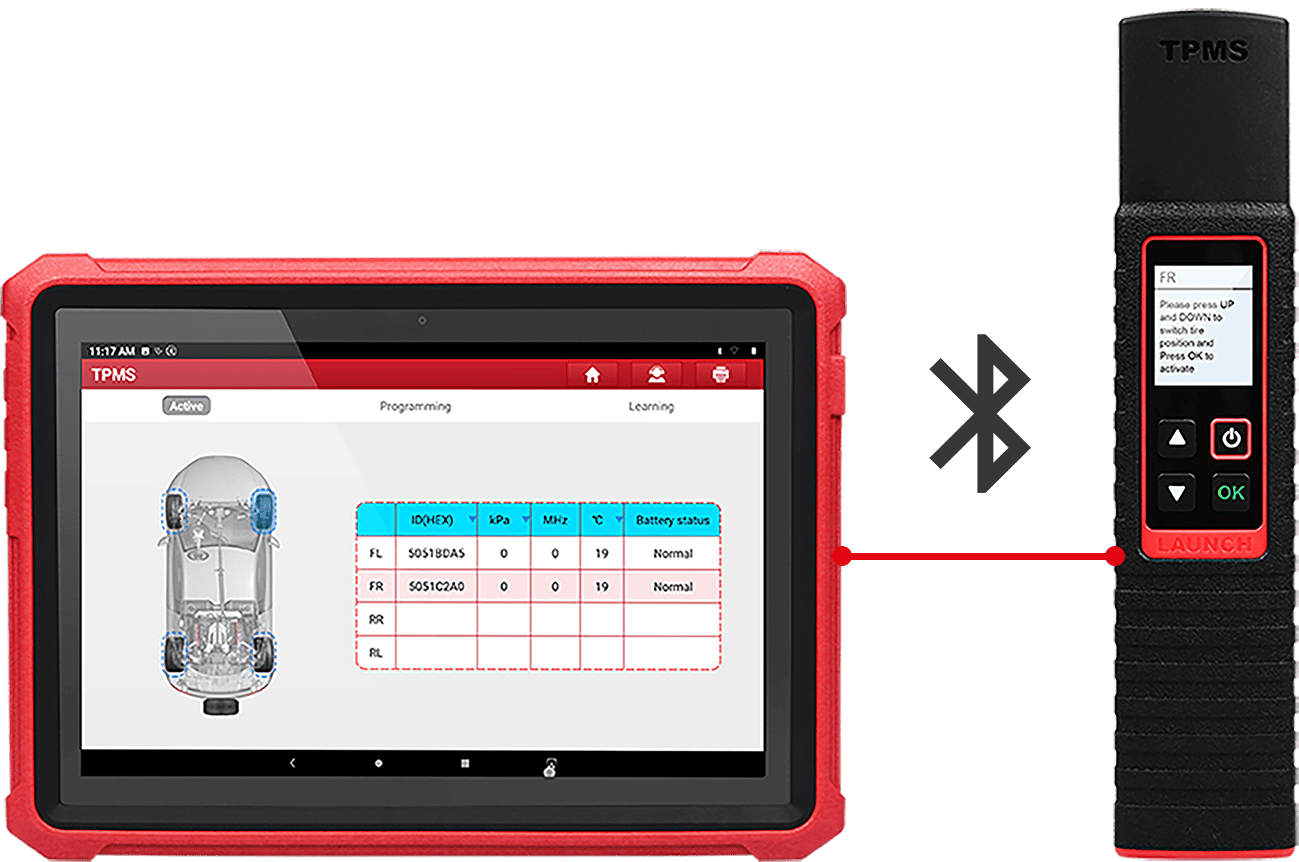

The TSGUN is light to carry and simple to operate. It has been designed exclusively for use with professional level Launch X-431 diagnostic tools (Pro4, All Pro5's, TAB2, TAB3).
It supports programming of all Launch brand TPMS sensors.

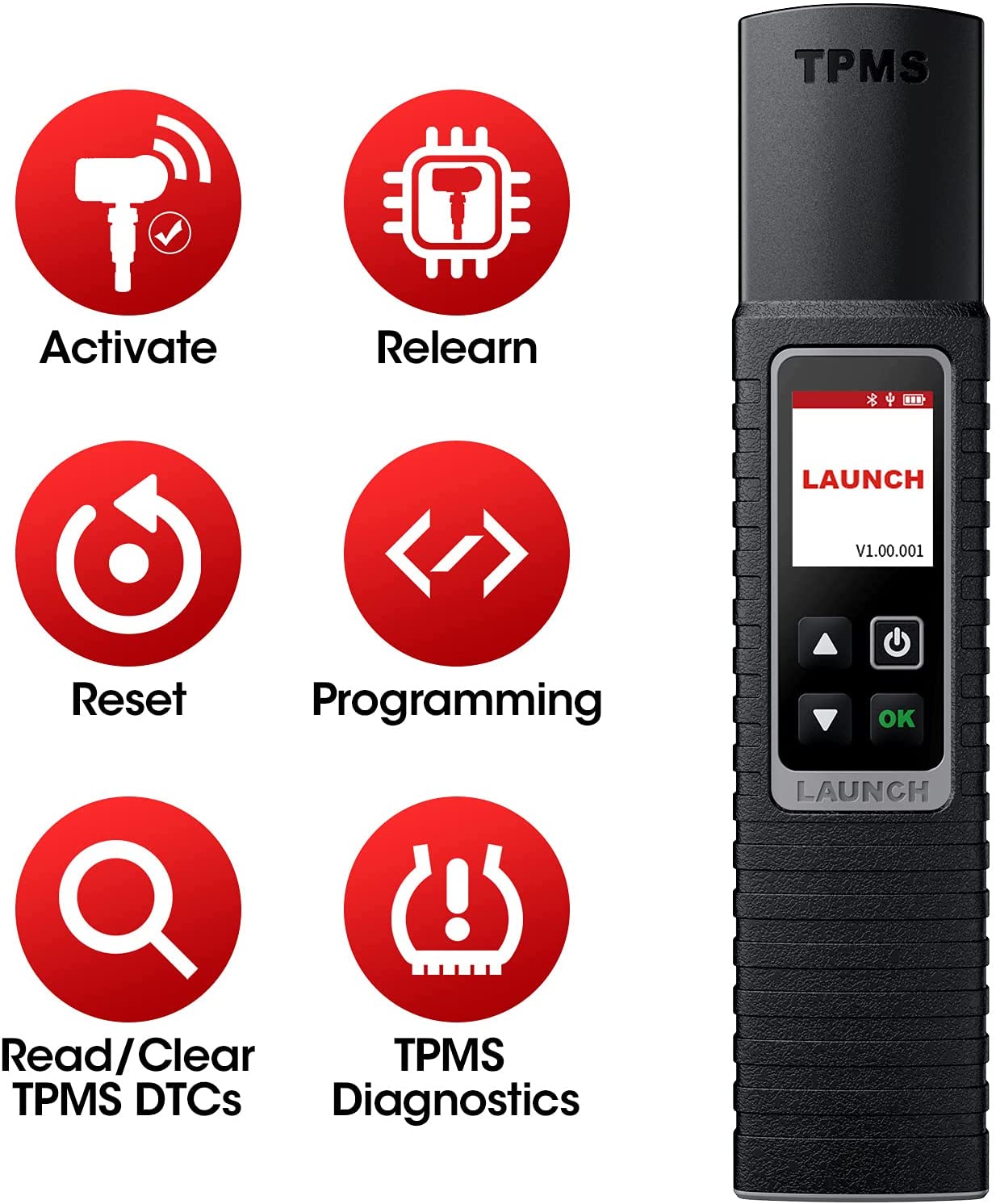

Features:
- 1.77 inch color screen
- Instantly read tire pressure, tire temperature and battery status
- Diagnose tire pressure fault, including read DTC and clear DTC
- Activate and match all 315MHz or 433MHz sensors
- Read, copy and write the sensor ID quickly
- Reprogram LAUNCH sensors unlimited times
- Built-in tire pressure learning instruction for easier operation
- Covers 98% of global vehicles with tire pressure systems
Specifications
| Display | 1.77 inch color screen |
| Resolution | 168 × 128 Pixel |
| Battery | 3000 mAh |
| Input Voltage | DC 5V |
| Working Current | ≤1A |
| Working Temperature | -10℃ ~ 50℃ |
| Storage Temperature | -20℃ ~ 60℃ |
| Size | 252 × 54 × 30 mm |
