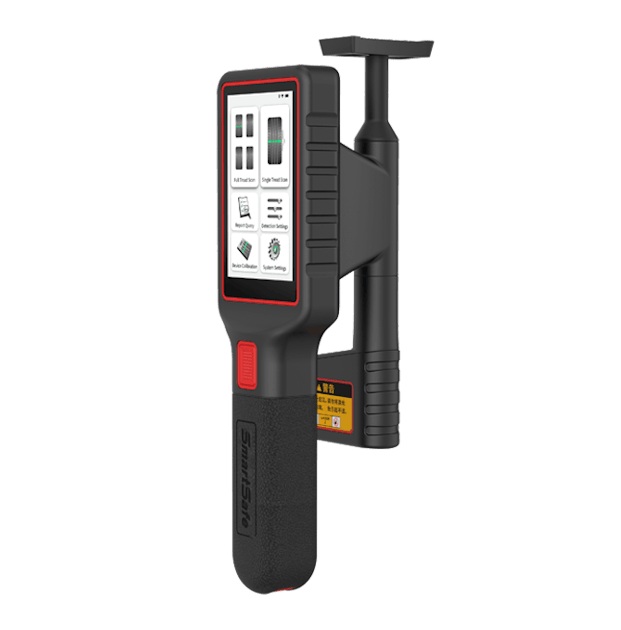

LAUNCH TTM313 Tire Tread Depth Examiner

TTM313 is a handheld tire tread detector that supports full tread and single groove measurements. With a measurement accuracy of 0.1mm,
 it can quickly and accurately obtain tire wear information and provide maintenance recommendations such as tire uneven wear,
 replacement, and four-wheel alignment.

Features

• Full Tread Inspection: Scans the entire tread surface in a single pass, capturing groove count and depth data within 3 seconds;
• High Measurement Accuracy: Utilizes proprietary optical measurement and image recognition technology, achieving measurement
  precision as high as 0.1mm;
• . Intelligent License Plate Recognition: Achieves over 95% recognition accuracy with autonomous learning capabilities. License plate
  information is automatically linked to inspection reports. Supports countries including the USA, Germany, Italy, Russia, Brazil, with more
  being added continuously;
• DOT Smart Recognition: Supports tire DOT scanning to extract production date, manufacturer details, and production batch information, with tire expiration alerts;
• Single Groove Inspection: Measures individual tire grooves sequentially, ideal for irregularly shaped tires with complex tread patterns;
• Real-Time Measurement Display: 3.97-inch LCD HD screen shows measurement results instantly;
• Professional Inspection Reports: Generates tread inspection reports containing tread data, braking distance, uneven wear analysis,
  replacement recommendations, and repair suggestions;
• Report Sharing: Inspection reports can be shared with vehicle owners via QR codes or email;
• Inspection Data Interface: Enables uploading inspection data to customer servers through standard API interfaces.

Functions

• Tread Depth Measurement: Supports one-time measurement of the entire tread surface for a single tire, as well as single-groove
  detection—measuring the depth of an individual groove or the depth of small tread patterns.
• License Plate Intelligent Recognition: Utilizes the EasyCheck Vehicle Service license plate recognition algorithm to intelligently
  identify license plate numbers. Currently supports license plates from the United States, Germany, Russia, Brazil, and Italy.
• Inspection Report: Rapidly generates tire tread inspection reports displaying tread data, wear analysis, estimated braking
  distance, maintenance recommendations, and more. Share via QR code after connecting to Wi-Fi.
• Parameter Settings: Supports configuration for 4/6 tire counts, tread depth standards, and measurement units
• Device Calibration: When paired with calibration blocks, users can calibrate measurement accuracy as needed
• System Settings: Supports Wi-Fi connectivity, language switching, screen brightness adjustment, auto-sleep mode, and software
  updates.

Parameters

View Specification Sheet
