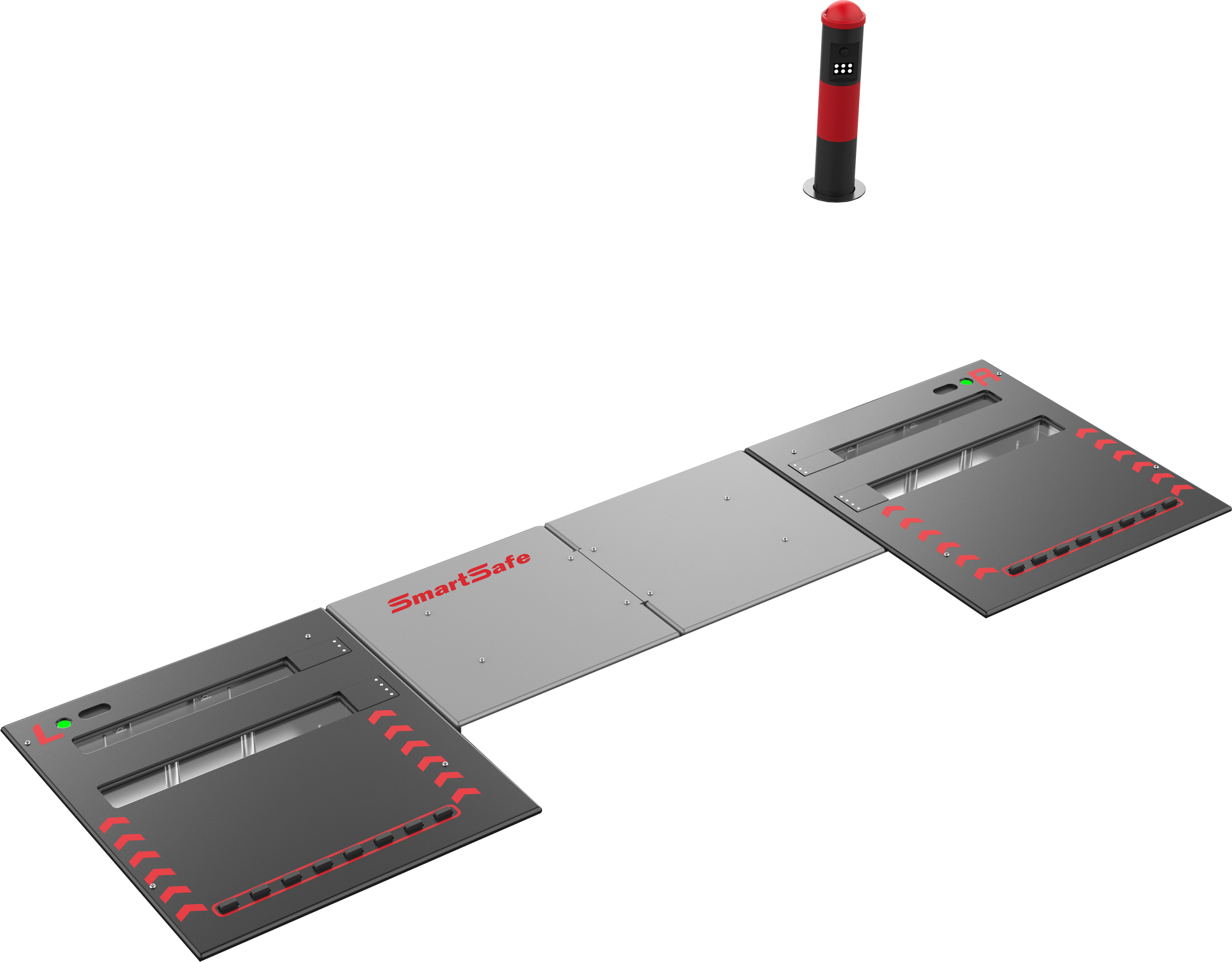

TTM613F is an underground intelligent tire tread detection device for four-wheel passenger vehicles. It can quickly and accurately determine tire
wear and provide maintenance recommendations such as uneven tire wear, replacement, and four-wheel alignment.
Features
- Fully automatic detection, no manual operation required, greatly improves detection efficiency, and is suitable for tire tread detection of all types of four-wheel passenger vehicles;
- High measurement accuracy: Using own patented optical measurement and image recognition technology, the measurement
accuracy is as high as 0.1mm; - Intelligent License Plate Recognition: With an accuracy rate exceeding 95% and support for autonomous learning, license plate
information is automatically associated with detection reports; it supports the United States, Germany, Italy, Russia, Brazil and other
countries, with more to come; - Professional inspection report: Generates a tread inspection report, providing tread data, braking distance, uneven tire wear,
replacement suggestions, repair suggestions and other information; - Report sharing: The inspection report can be shared with the car owner via QR code or email;
- Detection data interface: Detection data can be uploaded to the customer server through the standard API interface;
- Underground installation: Abandoning the "bump" or "step" formed by traditional equipment protruding from the ground, the
underground design is adopted, which takes up less operating space and provides more services.
Functions
Tread depth measurement: After the vehicle passes, the system automatically identifies the number of tire grooves and measures
the groove depth.
Intelligent License Plate Recognition: With an accuracy rate exceeding 95% and support for autonomous learning, license plate
information is automatically associated with detection reports; it supports the United States, Germany, Italy, Russia, Brazil and other
countries, with more to come.
Inspection report: Quickly generate a tread inspection report that displays tread data, wear analysis, braking distance estimation,
repair suggestions, and more, and supports report sharing.
Report sharing: The inspection report can be shared with the car owner via QR code or email.
Parameter settings: Support setting vehicle information, tread depth standard, store information, and backup data storage location.
Air knife cleaning: It can clean dust and impurities on the surface of the equipment window, obtain clearer and interference-free laser
and image data, and improve detection accuracy.
Multi-terminal interconnection: Can be used with a computer or with multiple devices such as ST13/P13/P01 to display measurement results and save reports simultaneously.
Parameters
| Measurement accuracy | 0.1 mm | Operating voltage | DC 12V |
| Measuring width | 450 mm (max) | Communication method | Bluetooth, USB, Wi-Fi |
| By vehicle speed | 4–15 km/h | Waterproof grade | IPX5 |
| Maximum load | 4T | Operating temperature | -10 ~ 45°C |
| Vehicle wheelbase range | 1360 ~ 1720 mm | Operating humidity | 20% ~ 85% |
| Working power supply | AC 100–220V 50/60Hz | Overall size | 2136 × 681 × 84 mm |
