ALLScanner VCX SE With VAG License , ODIS Version 23 and ODIS Engineering V.17
Product Description:

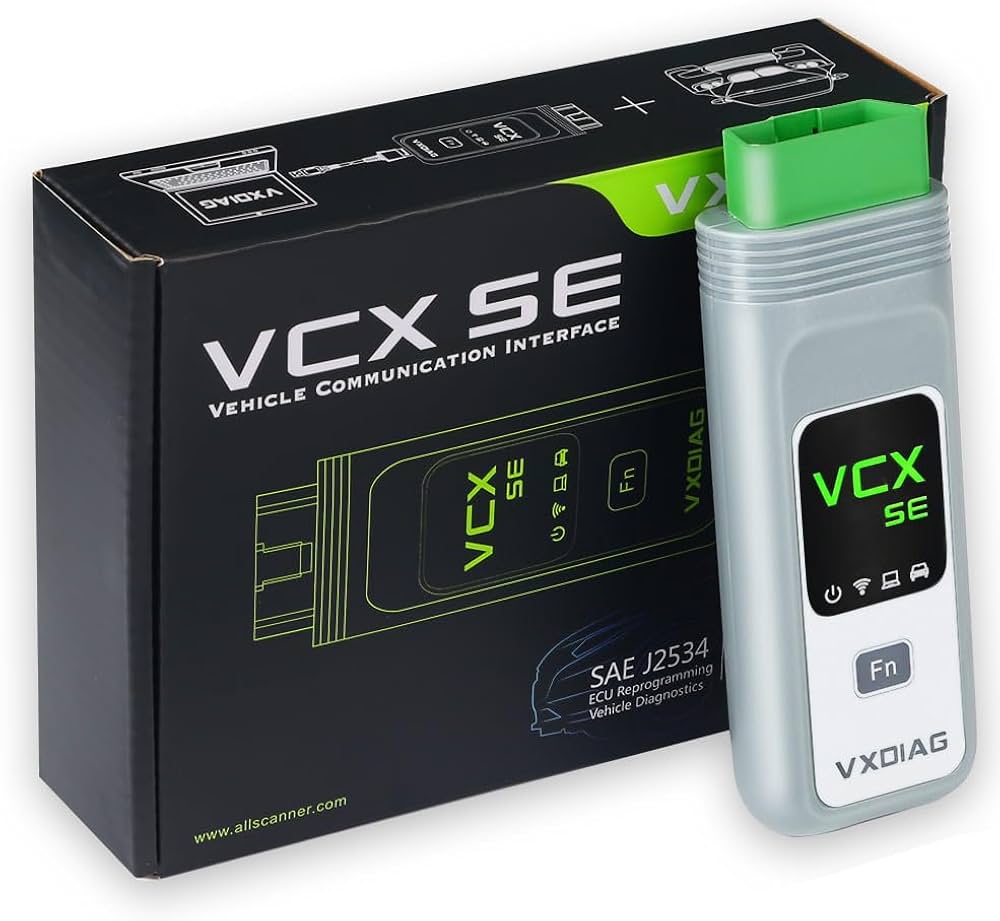

VAG Group Package, device and software ( VCX SE With license Vag , Odis Service 23 and Odis Engineering 17 )
Package Included
- ODIS VAG Group Diagnostics & Programming Software Version 23
- ODIS Engineering Software V.17
- ALLScanner VCX SE Without Licenses Diagnostic Tool
- All Scanner VAG License For VCX-DoIP / VCX SE Diagnostic Tool
Vcx-se is the latest generation of diagnostic equipment launched by Allscanner for remote diagnosis platform. The ultra-high integrated hardware design can fully adapt to a variety of original diagnostic software, not only support local diagnosis, but also realize super remote diagnosis.
Dual mode intelligent remote diagnosis
- Super remote diagnosis only needs equipment networking to realize on-line diagnosis of the original factory
- Compatible with remote diagnosis, it can support remote diagnosis of various special function equipment
- The equipment can quickly access to the remote diagnosis platform with one key
One device supports many original vehicle diagnostic softwares
- The hardware is updated synchronously with the VCI of the major original factories
- Realize the original factory level diagnosis function of the world’s major brands
- Advanced diagnosis and programming functions consistent with original factories
- One click installation, original support driver and online upgrade
Highly integrated vehicle diagnostic interface
- High performance dual core processor
- Support 4-way CAN bus, 2-way K-line / L-line
- Innovative OBD-II multi-channel communication hardware
- Support mapping vehicle DoIP Ethernet to WLAN
- Host communication interface supports USB / RJ45 / WLAN
- Portable design with integrated OBD-II interface
- USB Type-C reinforcement design
Meet the automotive industry standard design
- SAE-J2534-1/2 Pass-Thru with EURO 5
- ISO-22900 MVCI & D-PDU
- ISO-13400 DoIP
J2534 original factory level ECU programming functions
- ECU software upgrade and calibration
- ECU replacement, flashing and programming
Original vehicle diagnostic functions supported
| BENZ | BenZ, Maybach, Smart, FUSO | XENTRY Diagnosis & DAS & DTS |
| BMW | BMW, Rolls Royce, MINI | ISTA-D/P & E-Sys & INPA |
| VW | Volkswagen, SIAT, Skoda, Bentley, Lamborghini | ODIS & ODIS-Engineer |
| AUDI | Audi | ODIS & ODIS-Engineer |
| JLR | Jaguar, Land Rover | JLR Pathfinder / JLR SDD |
| VOLVO | Volvo | Volvo VIDA |
| GM | Chevrolet, Buick, Cadillac, Opel, Horton | GM GDS2 & Tech2Win & RDS |
| Ford | Ford | FORD IDS |
| MAZDA | Mazda | MAZDA IDS |
| TOYOTA | Toyota, Lexus, SAIN | TOYOTA Techstream TIS |
| HONDA | Honda, Acura | HONDA Diagnostic System HDS |
| SUBARU | Subaru | Select Monitor SSM3/SSM4 |
Hardware specifications
| Network processor | 32bit 560MHz MIPS, 32MB FLASH, 128MB DDR |
| Protocol processor | 32bit 180MHz ARM, 1MB FLASH |
| Diagnostic interface | SAE-J1962 standard, OBD-II diagnostic interface |
| DoIP interface | ISO-13400-4 Option1 Ethernet |
| Wired interface | USB TYPE-C |
| Network interface | USB TYPE-C to RJ-45 Ethernet |
| Wireless interface | WLAN 802.11 b/g/n |
| Indicator lights | Four LEDs: power, wireless, communication, vehicle |
| Power supply | DC 9v-36v |
| Power | 2W |
| Size | 140 x 50 x 25 mm |
| Weight | 0.3KG, package 0.8kg |
| Working temperature | -20～+70 °C |
| Storage temperature | -40～+85 °C |
| Certification | EU CE, US FCC |
Supported vehicle bus protocols
- ISO-13400 DoIP
- ISO-9141 K-Line
- ISO-14230 K-Line
- ISO-17987 LIN BUS
- ISO-15765 CAN
- SAE-J1850-VPW (GM Class2)
- SAE-J1850-PWM (FORD SCP)
- ISO-11898-2 DWCAN
- ISO-11898-3 DWFTCAN
- SAE-J2411 SWCAN (GMLAN)
- VAG TP20 CAN (SAE-J2819)
- VAG TP16 CAN
- VAG KW81 (SAE J2818)
- SAE-J2610 SCI (Chrysler)
- SAE-J1567 CCD BUS (Chrysler)
- SAE-J2740 GM ALDL
- SAE-J2809 HONDA DIAG-H
- NISSAN DDL UART with CLOCK
- BMW DS2
- FORD UBP
- BENZ KWFB
- BENZ MB-ISO
