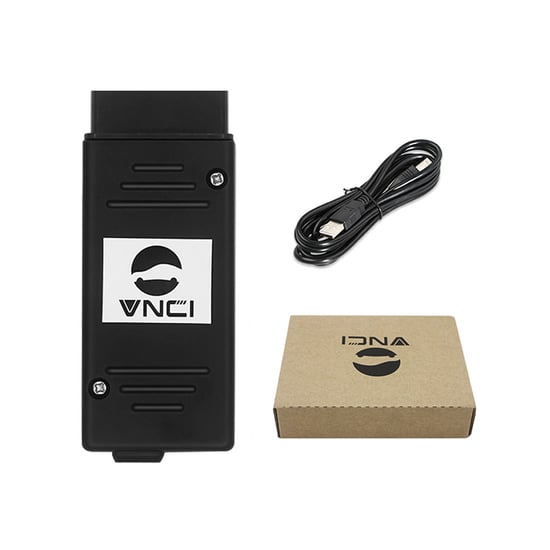

VNCI MDI2 Cadillac, Chevrolet, Buick, GM Diagnostic Interface Series Of Original Factory Mode Diagnostic Tools
Product Description:
VNCI MDI2 diagnostic scanner for Cadillac, Chevrolet, Buick and GM vehicles compatible with the latest original software driver. Plug and play without installing any third-party patches and can replace the original GM MDI2 interface. Provides full original GM MDI2 interface functionality.
Overview
VNCI MDI2 offers original-level processing speed, security and programming performance. It works with General Motors Global A and Global B platform models and allows diagnosis and programming of automotive electronic systems through PC-based software communication.
Supported Diagnostic Systems
- GDS2
- RDS
- Tech2Win
- Data Bus Diagnostic Tool (CAN Bus analyzer)
- TIS2Web-SPS Pass-Thru offline programming
- Global DPS offline programming and Pan-Asian DPS programming
- GM Techline Connect (TLC)
Advantages
- 100% support CAN FD and DoIP communication
- No file modification or third-party software required
- Compatible with latest original drivers
- Simulates original hardware verification
- Supports B platform offline programming and security algorithms
- Free registration for GDS, DPS and Tech2Win software
- Faster and safer programming
Functions
- Vehicle diagnosis
- Read and clear fault codes
- Key matching
- Online and offline module programming
- CAN FD and DoIP module programming
- Pass-Thru programming for controllers (PCM, ABS, VTD, etc.)
Supported Protocols
- SAE J2534 Pass-Thru
- CAN FD
- DoIP
- UART
- Class2
- KWP2000
- GMLAN (CAN)
Vehicle Coverage
- GMC
- Chevrolet
- Buick
- Cadillac
- Opel
- Models from 1996 to present
Connection Modes
- USB connection
- AP (Access Point) direct WiFi connection
- WLAN station connection
