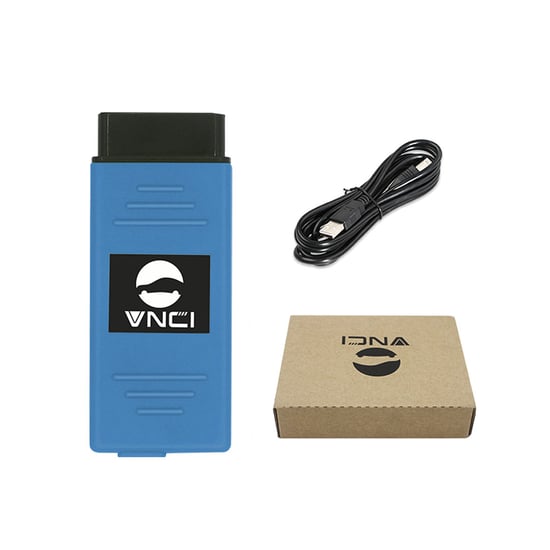

VNCI VCM3 New Ford Mazda Diagnostic Interface Compatible With Ford Mazda Original Software Driver No Third-party

Product Description:
VNCI VCM3 diagnostic interface for new Ford and Mazda vehicles compatible with the original software driver. No third-party software is required and it is plug-and-play. It can completely replace the original VCM3 diagnostic tool. Supports CAN FD and DoIP communication and performs diagnostics, programming and immobilizer matching for modern Ford vehicles and pickup trucks. Supports USB, WiFi direct connection and wireless LAN connection.

Functions

• Supports Ford IDS, FDRS, Mazda IDS and MDARS software
• Fault diagnosis
• Module flashing and programming
• Immobilizer matching
• Supports Ford vehicles from 1996 to 2023+ including new pickup trucks
• Supports DoIP and CAN FD communication
• Supports 4-channel CAN BUS

Features

• Compatible with original software driver
• No third-party software required
• Plug and play operation
• Supports USB connection
• Supports WLAN Access Point connection
• Supports WLAN Infrastructure connection

Supported Protocols

• CAN FD
• ISO9141
• ISO14230
• J1850 VPW
• J1850 PWM (Ford SCP)
• ISO11898 High Speed (500Kbps)
• ISO11898 Medium Speed (125Kbps)
• ISO15765 High Speed (500Kbps)
• ISO15765 Medium Speed (125Kbps)
• FEPS (Flash EEPROM Program Signal)
• KWP1281
