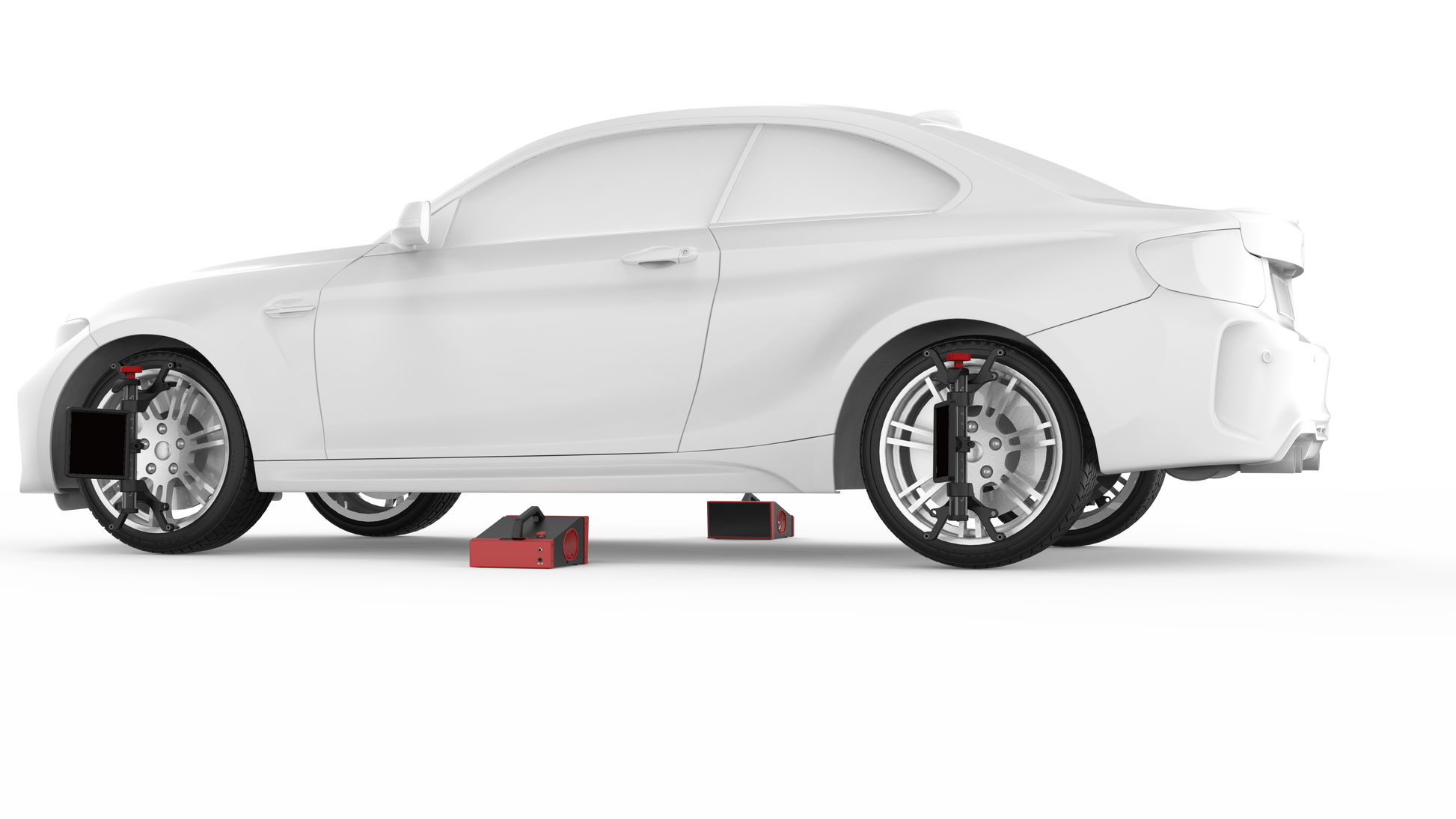

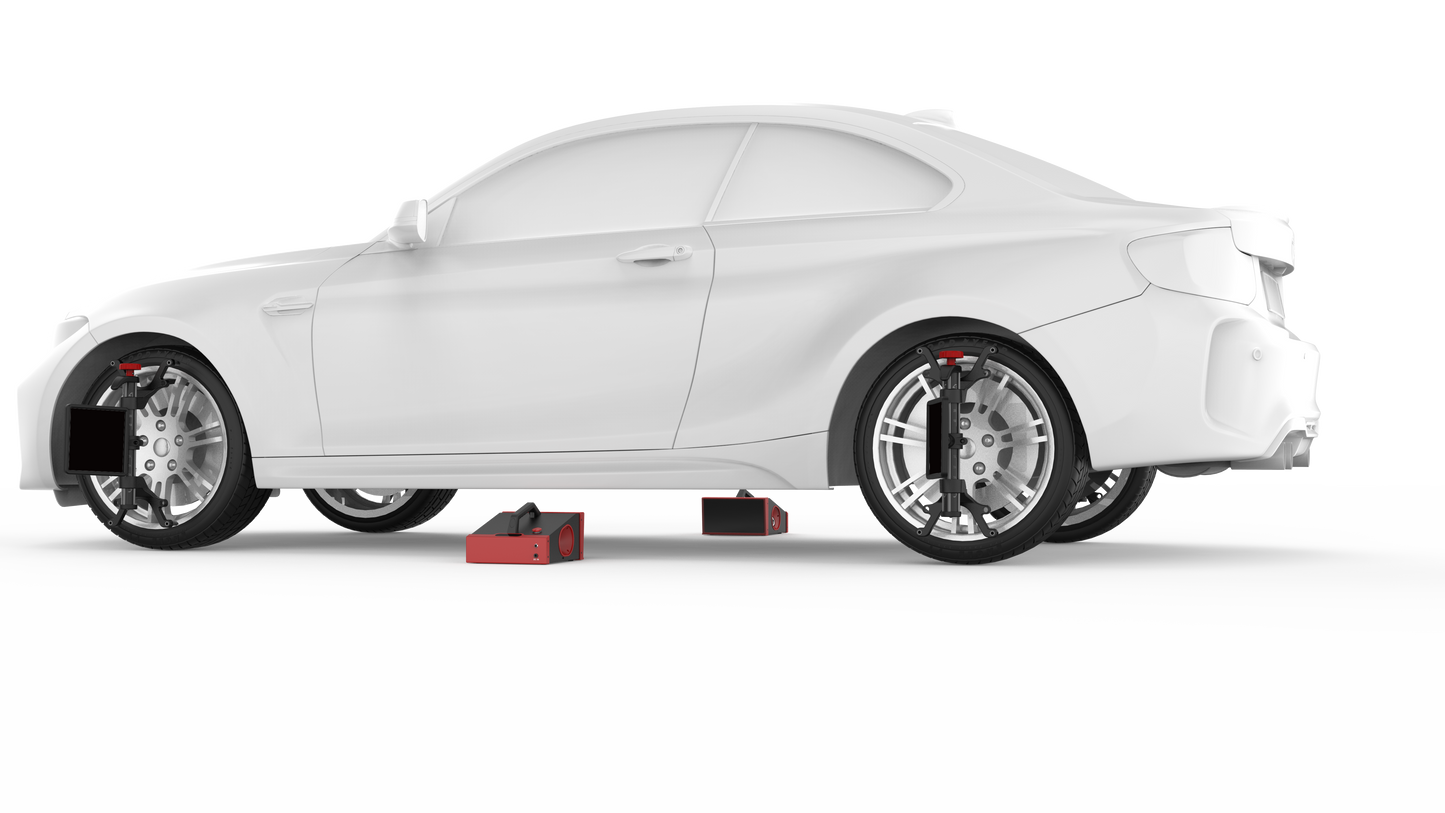

WA613F is a ground-based wireless 3D wheel aligner for car repair gutter, consisting of two ground-based measurement units, four wheel
clamp targets, and a tablet terminal.
Features
- Instant experience: no installation, no wiring, no calibration required, ready to use right out of the box；
- Space-saving: No need to install beams and cabinets, requiring less space；
- Quick measurement: Outputs high-precision four-wheel alignment results within 30 seconds；
-
Patented magnesium alloy single axle wheel clamp, lightweight and labor-saving, strong and durable. The wheel clamp axle comes
with a scale, and the wheel clamp can be pre-adjusted according to the tire diameter； - Magnetic measurement units: no assembly or wiring required, free to go, no calibration required, ready to use out of the box；
-
Wireless transmission: With ST13 intelligent connection terminal to display measurement results and process, and facilitate vehicle
bottom adjustment； -
Compact packaging: Lightweight design and materials significantly reduce packaging weight and size, with transport weight and
volume only 20%-30% of traditional 3D four-wheel alignment machines； -
Perfect for car repair gutter: Two measuring units can be placed on the ground for four-wheel alignment measurements, perfect for
car repair gutter； - Wall-mounted storage: wheel clamps can be hung on the wall by means of a wall bracket for convenient storage.
Functions
Four-wheel alignment measurement: It supports standard measurement and quick measurement and can measure key parameters such as toe, camber, caster, kingpin inclination, and thrust angle. Supports additional measurements such as wheelbase, wheel
track, axle offset, wheel offset, diagonal, center offset, etc.
Database: Supports positioning data of 50,000+ global vehicle models, and supports user-defined database.
Terminal wireless connection: Measurement data is transmitted wirelessly, and the four-wheel alignment process is displayed
with the ST13 intelligent connection terminal.
Test report: Generate professional test reports, support data comparison before and after adjustment, and support report sharing.
Perfect for car repair gutter: Two measuring units can be placed on the ground for four-wheel alignment measurements,
perfect for car repair gutter
| Parameter | Specification |
|---|---|
| Toe-in | ±20° |
| Camber | ±10° |
| Caster | ±20° |
| SAI | ±20° |
| Maximum steering angle | ±35° |
| Wheel Base | 1940 – 4600 mm |
| Wheel Track | 1290 – 1900 mm |
| Hub diameter (four-point hub clamp) | 275 – 640 mm |
