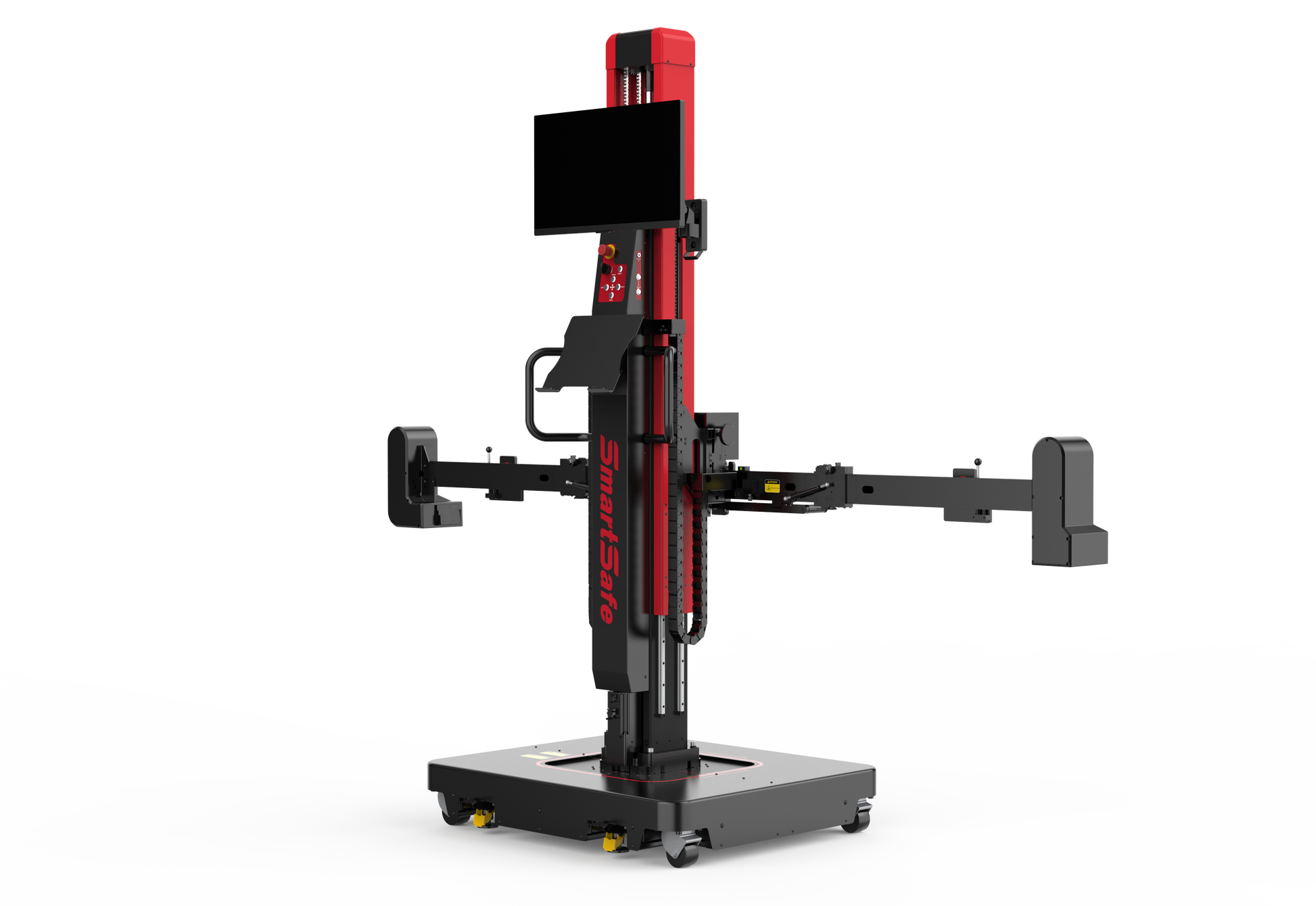

WAA939 Intelligent Driving Calibration System is an automated device that integrates four-wheel alignment and ADAS calibration functions.
Features:
- Automatic ADAS calibration using 4 high-resolution cameras and 4 high-precision motors to complete ADAS alignment and parallelization
- Target tracking and finding supported through automatic camera-based tracking
- Real-time self-calibration between camera modules to adapt to automated movements
- Dual-screen streaming synchronization with two-way control, supporting 24-inch HD display and 13.3-inch diagnostic tablet
- High-precision motion control with 4-axis high-precision stepper motors for forward, backward, left, right, rotation, and lifting movements
- Accurate beam angle measurement using two high-precision sensors to determine pitch and roll angles
- Ground level compensation by calculating vehicle level through four camera modules and adjusting pitch and roll
- Target distance measurement recognition without manual measurement, enabling quick distance setup
- Process-based ADAS calibration guidance with an interactive, beginner-friendly experience
Functions
- ADAS automatic centering and paralleling: Push the main frame to the approximate position to activate automatic centering and paralleling
- Automatic target lift: Automatically raises the target to the desired calibration position based on centering and height requirements
- Target finding and tracking: Beam automatically rises and falls with vehicle height changes to keep the target in the camera’s field of view
- Four-wheel alignment measurement: Supports standard and quick measurement of toe, camber, caster, kingpin inclination, thrust angle, wheelbase, wheel track, axle offset, wheel offset, diagonal, and center offset
- Vehicle type database: Covers four-wheel alignment data of more than 50,000 vehicle models worldwide and supports user customization
- Terminal wireless connection: Measurement data transmitted wirelessly and displayed when paired with ST13 intelligent terminal
- Test report: Generates ADAS calibration and four-wheel alignment reports with pre- and post-calibration comparison and report sharing
Parameters
| Rated power | 260 W | Main frame left and right motion range | ±90 mm |
| Power supply | 100 ~ 264 V, 50 / 60 Hz | Main frame rotation range | ±3° |
| Recommended working distance (wheel alignment) | 1.8 ~ 2.2 m | Hub diameter (four-point hub clamp) | 275 ~ 640 mm |
| Main frame folded dimensions (L × W × H) | 1500 × 900 × 1200 mm | Tire diameter (three-point tire clamp) | 470 ~ 1100 mm |
| Beam expanded / folded dimensions | 2780 / 1500 mm | Operating temperature | -10 ~ 50 ℃ |
| Main frame height range | 335 ~ 2175 mm | Storage temperature | -20 ~ 60 ℃ |
| Main frame front and rear motion range | ±120 mm |
