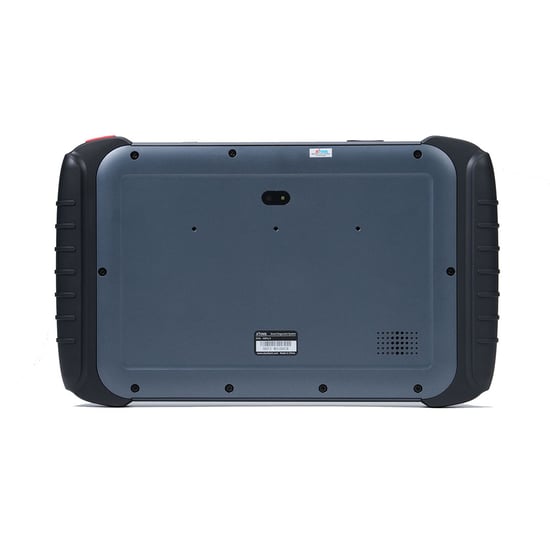

Xtool H6Pro 3 Diagnostic Tool Device

Xtool H6Pro 3 Diagnostic Tool Device Description:
Xtool H6Pro 3 is an automotive smart diagnostic system designed for mechanics, electricians, and auto repair stores. It supports basic diagnostic functions such as reading ECU version information, reading/clearing fault codes, live data, and freeze frames for full systems, it also supports abundant special functions under the system menu, ADAS calibration, programmable module installation, ECU coding, and online ECU programming. When scanning the whole system, it supports both the topology mapping and list modes, which can be switched freely. Also supported are 42 common special functions such as throttle matching, ABS bleed, service light reset, EPB test, SAS, BMS, injector coding, DPF regeneration, and TPMS reset. 98% vehicle coverage makes it available for over 85 brands and 10,000 vehicles.
Diagnostic Tools From X-Tool with Product Number: MK24838
This Weight Product: 12000g
 Xtool H6Pro 3 Diagnostic Tool Device User Manual

Coverage includes U.S., European, Asian and Chinese electric, gas and diesel, and hybrid vehicles.Provides fault code guidance for VAG and BMW.Supports offline programming for Ford, Lincoln and Mazda; Online coding & programming for VAG BMW and Mercedes-Benz. Includes OBDI Connectors, and charging dock.

Xtool H6Pro 3 Diagnostic Tool Device Highlights:
● 10.1'Touchscreen (1920 x 1200) / Android 10.0
● 2.2GHz+1.8GHz Octa-core Processor /8+128GB Memory
● Dual Wi-Fi Connection
● 6400mAh - 6hrs Continuous Use / 8MP Rear Camera
● New VCI Protocols: DoIP/CAN FD
● Coverage includes U.S., European, Asian and Chinese electric, gas and diesel, and hybrid vehicles
● Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
● Provides fault code guidance for VAG and BMW.
● Supports offline programming for Ford, Lincoln and Mazda; Online coding & programming for VAG BMW and Mercedes-Benz
● Perform ADAS Systems Calibrations for camera and radars
● Includes OBDI Connectors, and charging dock
● 2YR Warranty & 3 YR Software Subscription

Xtool H6Pro 3 Diagnostic Tool Device Specifications:
Operating System：Android 10.0
Processor：2.2GHz+1.8GHz Octa-core Processor
Memory：8G+128G
Display：10.1-inch, 1920×1200P
Camera：8.0 Megapixel, AF with Flashlight
Auto Input/Output：Microphone, Speaker
Dimension (L×W×H)：309.2×188.9×34.9 mm
Communication Method：Wi-Fi, USB
Connectivity：Type-C
Working Voltage：9-32V
Battery：6400 mAh, 7.3V
Working Temperature：0 to 40℃
Storage Temperature：-10 to 50℃
Compatible Protocol：CANFD, DoIP

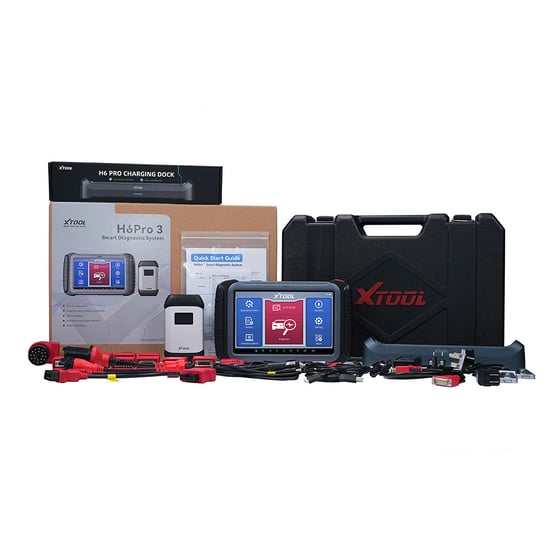

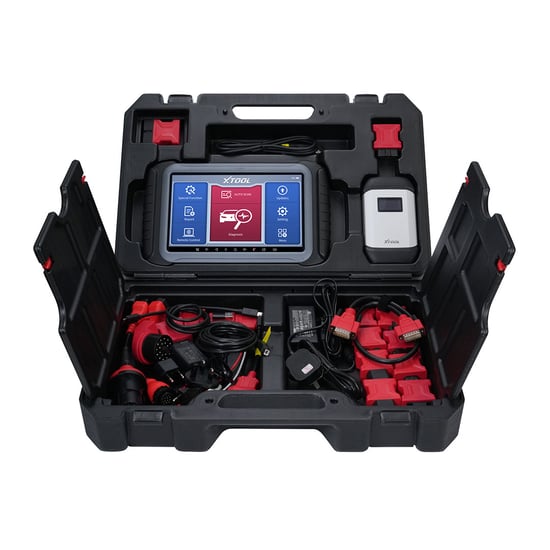

Xtool H6Pro 3 Diagnostic Tool Device Packing List:
Accessories

Color Carton
Certificate of Quality
Quick Start Guide
Packing List

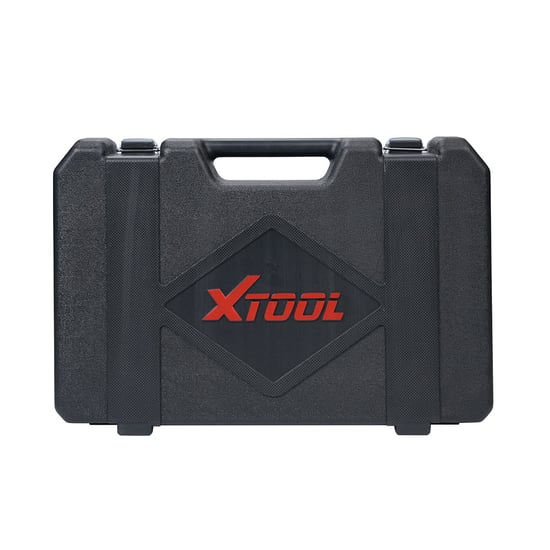

Tool Case

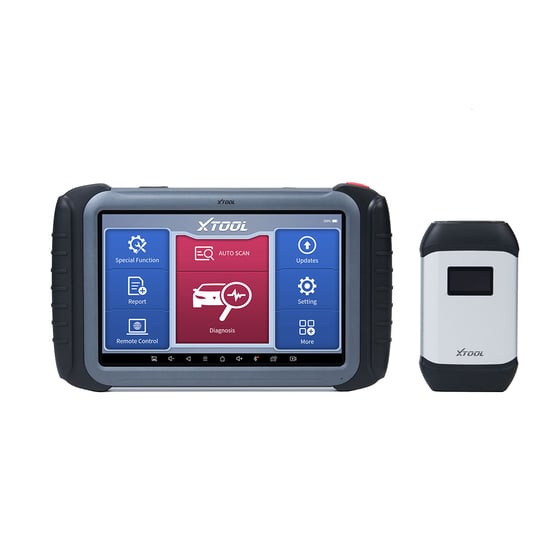

Main Units

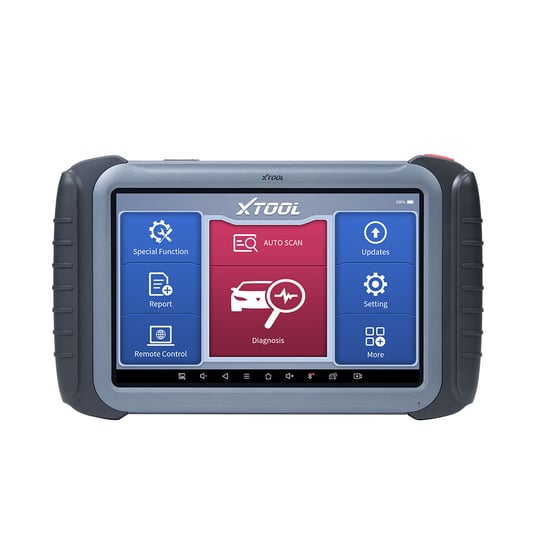

Tablet
VCI Box
Type C to Type-A Data Cable
Type C to Type-B Data Cable
Type C to Type-C Charger Cable
PD Supply Charging Adapter US
Charging Adapter EU
Charging Adapter UK
Cigar Lighter Power Plug

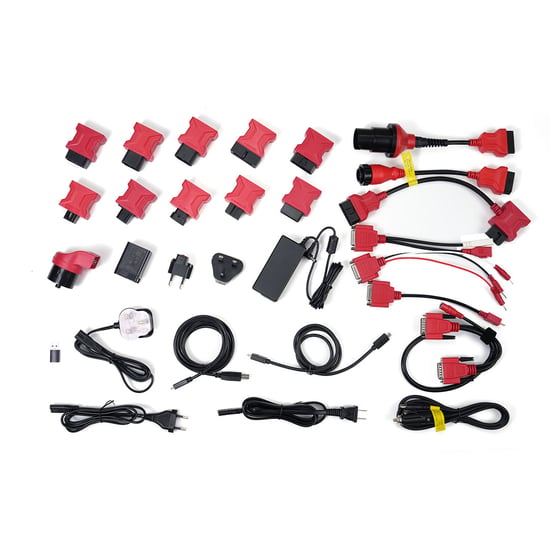

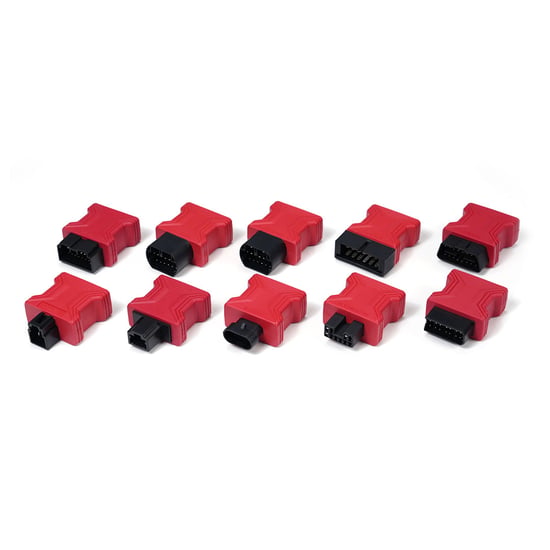

Test Connectors

DB15 Main Cable
OBD II-16
HONDA-3
BMW-20
BENZ-14
BENZ-38
TOYOTA-17
MAZDA-17R
KIA-20
HYUNDAI/KIA-10
NISSAN-14
GM/DAEWOO-12
UNIVERSAL-3
SUZUKI-3
FIAT-3
CITROEN-2
AUDI-4
MITSUBISHI-12+16
