XTool NEXT N9EV EV Smart Diagnostic System

Product Description:

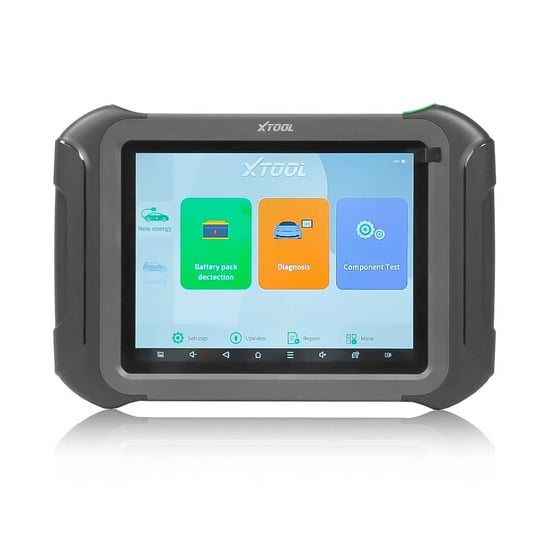

XTool NEXT N9EV is a professional EV smart diagnostic system equipped with a 9.7-inch high-performance tablet. It supports Bluetooth communication, DoIP protocol and CAN-FD protocol, and provides advanced EV diagnostics and maintenance functions.

Main Features:

• Supports most EV models in the market
• Online update for app, software and operating system
• Battery pack detection
• ECU information reading
• Read and clear DTCs
• Live data stream
• IMMO functions
• More than 40 special service functions

Key Highlights:

• OEM-level Tesla diagnostics (with dedicated adapters)
• Topology mapping visualization
• ADAS calibration support
• Supports Bluetooth, DoIP and CAN-FD communication

Battery Pack Detection:

• Supports EV battery pack testing for Tesla, Renault, Volkswagen, Nissan and other electric vehicles

Tesla Diagnostics:

• Read and clear fault codes
• Live data monitoring
• Model X / Y / S / 3 support (with adapter)

Topology Mapping:

• Displays communication status of each vehicle system during automatic scanning

Special Service Functions:

• Oil/service reset
• Electric parking brake
• Throttle relearn
• Window initialization
• TPMS reset
• ABS bleeding
• Gearbox matching
• Immobilizer/key programming
• BMS reset
• Headlight reset
• Air suspension reset
• SAS calibration
• Injector coding
• Airbag reset
• Seat configuration
• Electronic pump activation
• ECU configuration
• Odometer read
• VIN programming
• NOx reset
• EGR relearn
• AdBlue reset
• SRS reset
• Clutch adaptation
• Start/Stop reset
• ADAS calibration
• Battery pack detection

Technical Specifications:

• Operating System: Android 10
• Processor: Quad-core 1.8GHz
• Memory: 2GB RAM, 128GB ROM
• Display: 9.7-inch (1024 × 768)
• Communication: Bluetooth 4.2, WiFi 2.4/5G
• Camera: 8MP rear camera with flash
• Battery: 10000mAh lithium-polymer
• Working time: Up to 12 hours
• Operating temperature: -10°C to 40°C

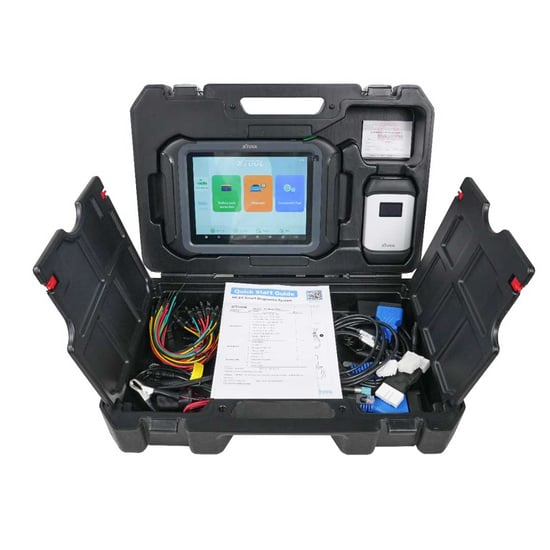

Package List:

• Main unit tablet

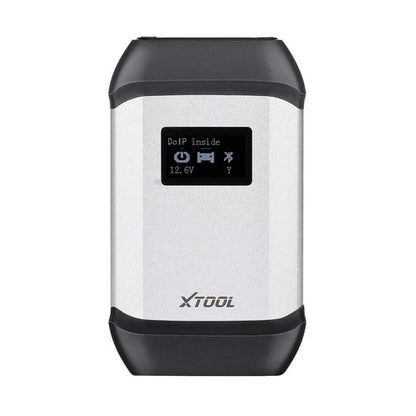

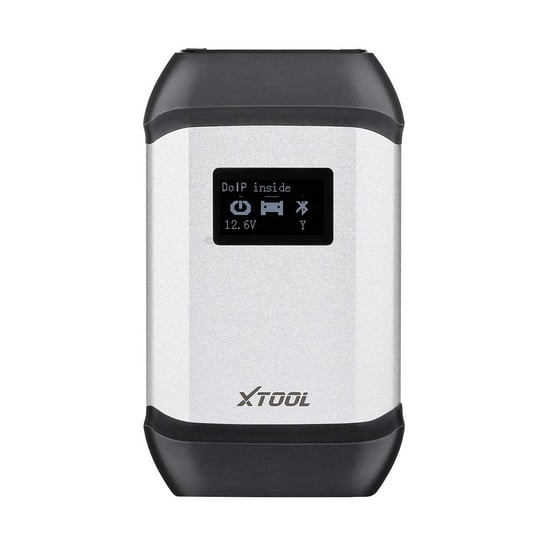

• VCI box

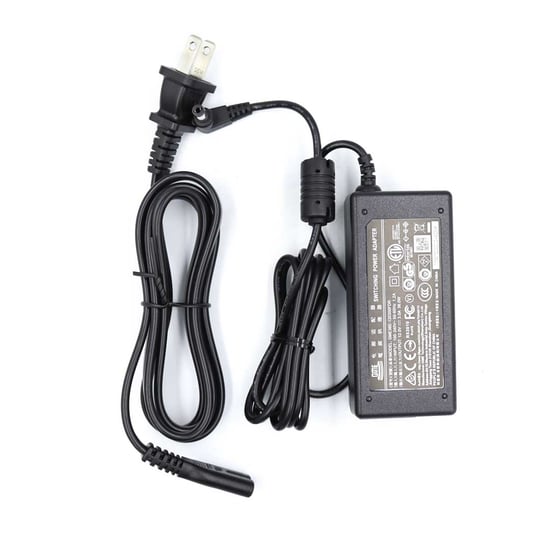

• Charger (DC 12V-3A)
• Charger cable
• DB15 to OBD2 main cable
• USB 3.0 to Type-B main cable
• USB 3.0 PC connection cable
• Tesla battery pack adapter J1E04

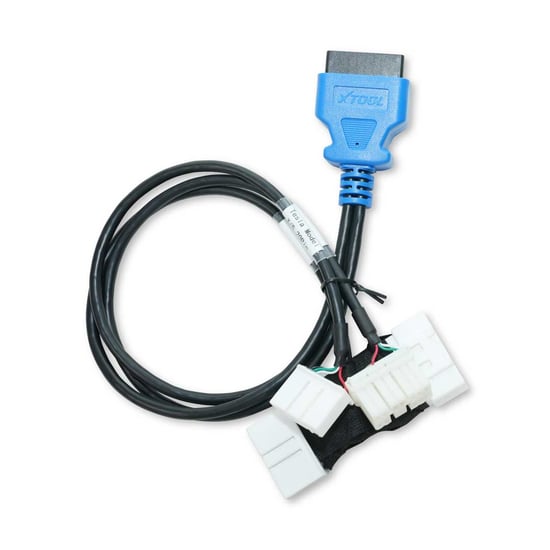

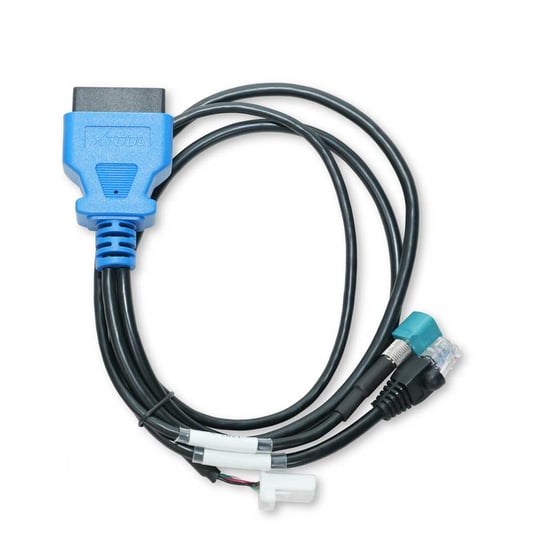

• Tesla adapter 1-L1E02
• Tesla adapter 2-L1E03

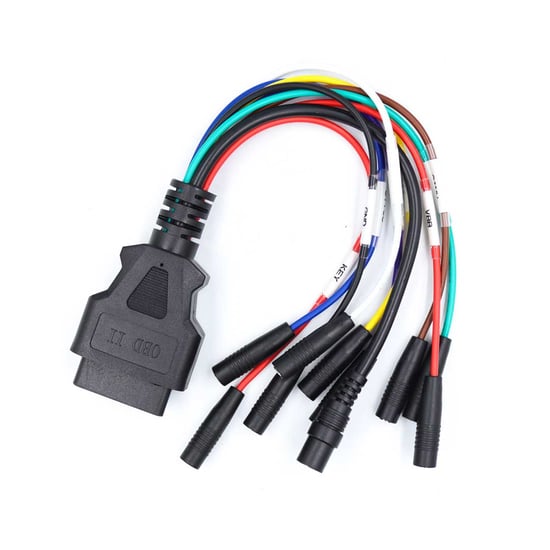

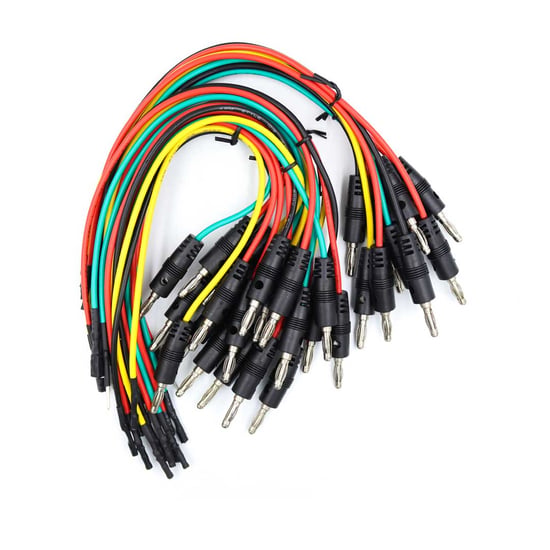

• Universal jumper cables

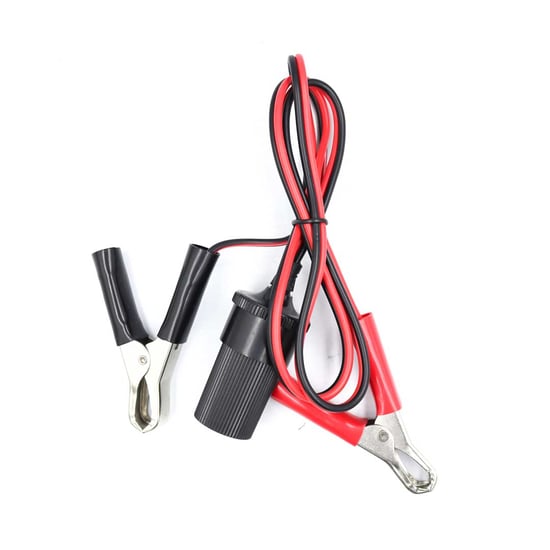

• Battery clamp wire

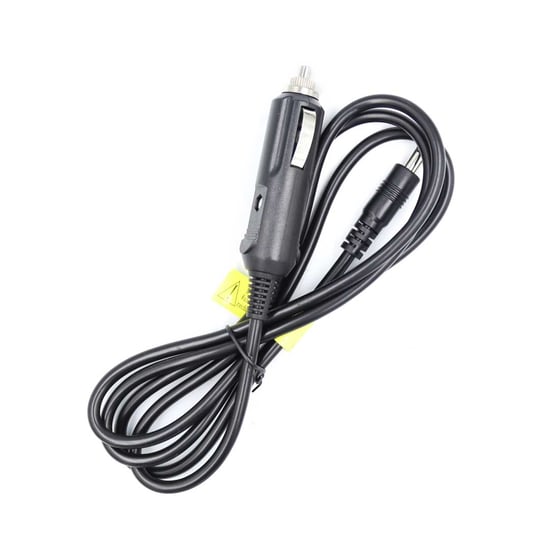

• Cigar lighter cable

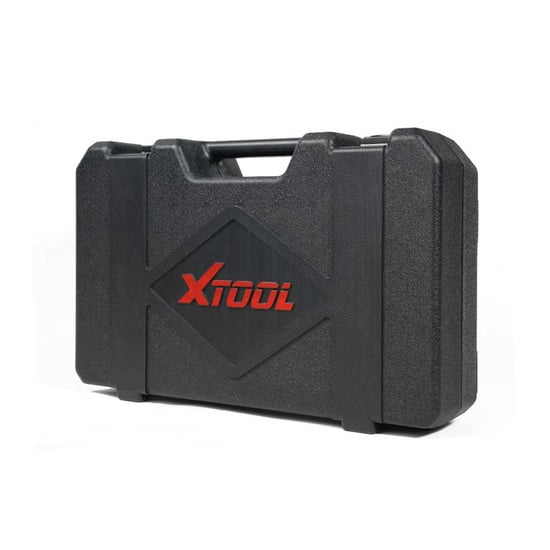

• Tool case and packing accessories
